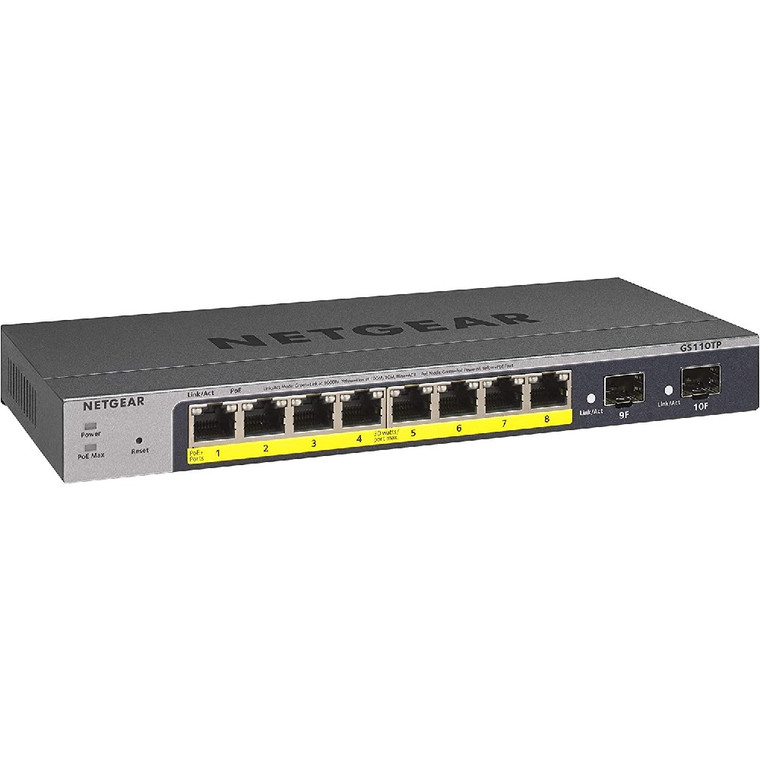

Netgear 8-Port Gigabit PoE+ Ethernet Smart Switch with 2 SFP Ports and Cloud Management (55W)

Netgear 8-Port Gigabit PoE+ Ethernet Smart Switch with 2 SFP Ports and Cloud Management (55W)

Netgear
SKU:
GS110TP-300AJS / GS110TP-300EUS
|
UPC:
606449137644

Pricing available upon request

Lifetime Warranty
Current Stock:
Description

Get switching now, remote/cloud management now or later.

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

Traffic Management

  • Auto Negotiation of speed and duplex modes
  • IEEE 802.3x Flow Control
  • Dynamic MAC address management
  • IEEE 802.1Q-based VLAN
  • Auto Voice VLAN
  • Auto Video VLAN (selected models)
  • VLAN routing (selected models)
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 801.2p-based QoS
  • TCP/UDP-based QoS
  • DiffServ
  • IPv4 and IPv6-based QoS (selected models)
  • DSCP Support
  • Rate Limiting (ingress, or egress)
  • Link Aggregation and LACP

Switch Management

  • Insight mobile app or Insight Cloud Portal
  • Web browser-based management GUI
  • Smart Control Center Software for multi-switch management
  • IP Access List
  • IPv6 Management
  • Configurable Management VLAN
  • SNMP v1/v2c and v3
  • Standard MIBs (RFC1213, RFC1643, and RFC1493)
  • RMON group 1, 2, 3, 9
  • Firmware Upgrade through Smart Control Center (TFTP)
  • Firmware download (to switch) and upload (to server) through TFTP/HTTP
  • Configuration and Image Upload (to PC) through HTTP
  • Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
  • Memory & FLASH log
  • Syslog (server)
  • System password protection


Technical Specifications

GS110TPv3_tech_specs_image_1

GS110TPv3_tech_specs_image_2
  • Model Description : 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports and Cloud Management
  • 10/100Mbps ports : 8
  • Gigabit ports : 8
  • SFP ports : 2
  • Number of PoE ports : 8
  • PoE+ (802.3at) : 8
  • Total PoE Power budget (Watts) : 8 PoE+ (55W)
  • Max MAC entries : 8K
  • Buffer size : 512KB
  • VLAN (Number Supported) : 64
  • VLAN routing : Yes
  • Dynamic VLAN assignment : Yes
  • MLD Snooping : Yes
  • Static route : Yes (32)
  • Host ARP table : 512 ARP
  • EEE : Yes
  • DoS Prevention : Yes
  • Internal/External : External DC 54V 1.25A
  • Max power (worst case, all ports used, line-rate traffic) : 15.1W
  • FAN : 0
  • Acoustic Noise Level @25C (dBA) : 0
  • Operating Temperature : 0° to 45°C (32° to 113°F)
  • MTBF : 1,200,041 hrs (137 yrs)
  • Weight (kg) : 0.61kg, ( 1.34 lb)
  • Dimensions (WxDxH) mm : 236 x 101 x 27 mm, ( 9.3 x 4.0 x 1.1 in)
