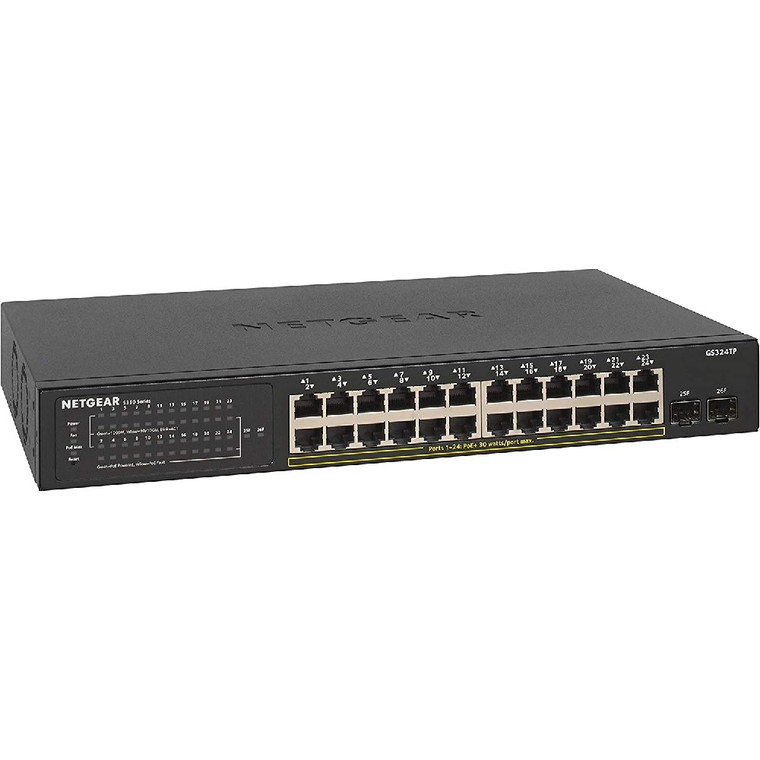

Netgear 24-Port Gigabit Ethernet PoE+ Smart Switch with 2 Dedicated SFP Ports (180W)

Netgear 24-Port Gigabit Ethernet PoE+ Smart Switch with 2 Dedicated SFP Ports (180W)

Netgear
SKU:
GS324TP-100EUS / GS324TP-100AJS
|
UPC:
606449135626

Pricing available upon request

Warranty: 5 Years
Current Stock:
Description

Experience advanced configuration & control with an easy-to-use GUI interface that offers refined control for secure setup, access, and SNMP management. Also benefit from advanced PoE controls and high PoE budget for any PoE deployment. Comes with a modern desktop design for simple and stylish for use in any room or office. Built to last: every NETGEAR network switch is rigorously tested for reliability, quality, and performance.



Traffic Management

  • Auto Negotiation of speed and duplex modes
  • IEEE 802.3x Flow Control
  • Dynamic MAC address management
  • IEEE 802.1Q-based VLAN
  • Auto Voice VLAN
  • Auto Video VLAN
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 801.2p-based QoS
  • TCP/UDP-based QoS
  • DiffServ
  • DSCP Support
  • Rate Limiting (ingress, or egress)
  • Link Aggregation and LACP

Switch Management

  • Web browser-based management GUI
  • Smart Control Center Software for multi-switch management
  • IP Access List
  • Configurable Management VLAN
  • SNMP v1/v2c and v3
  • Standard MIBs (RFC1213, RFC1643, and RFC1493)
  • RMON group 1, 2, 3, 9
  • Firmware Upgrade through Smart Control Center (TFTP)
  • Firmware download (to switch) and upload (to server) through TFTP/HTTP
  • Configuration and Image Upload (to PC) through HTTP
  • Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
  • Memory & FLASH log
  • Syslog (server)
  • System password protection
  • Registration through NETGEAT Insight App

Technical Specifications

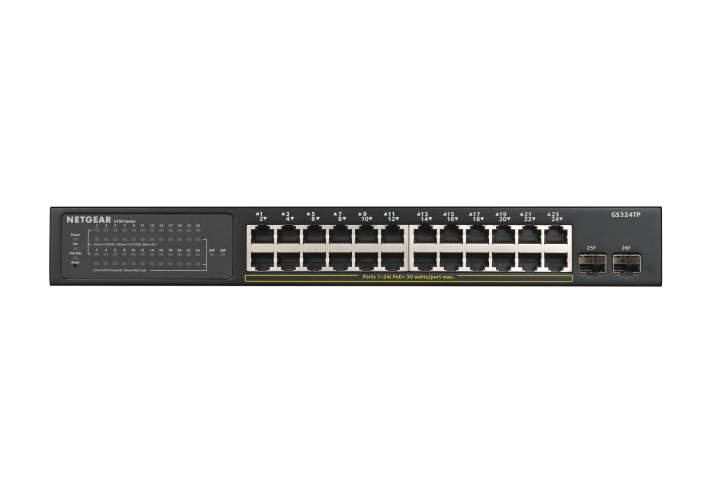

GS324TP_tech_specs_image_1

GS324TP_tech_specs_image_2
  • Model Description : NETGEAR® S350 Series 24-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports
  • Gigabit ports : 24
  • SFP ports : 2 (dedicated)
  • PoE+ (802.3at) ports : 24
  • Total PoE Power budget (Watts) : 190W
  • Max MAC entries : 16K
  • Buffer size : 512KB
  • VLAN (Number Supported) : 256
  • VLAN routing : N/A
  • Dynamic VLAN assignment : Yes
  • MLD Snooping : N/A
  • Static route : N/A
  • Host ARP table : Yes
  • EEE : Yes
  • DoS Prevention : Yes
  • Internal/External Power Supply : Internal 100-240VAC ~ 50-60Hz, 5A Max
  • Max consumption (Watts) : 229.9W (full PoE)
  • FAN : 2
  • Acoustic Noise Level @25C (dBA) : 32.8 dBA
  • Operating Temperature : 0° to 45° C (32° to 113° F)
  • MTBF : 1,328,429 hrs(152 yrs)
  • Weight (kg) : 2.69kg (5.93lb)
  • Dimensions (WxDxH) mm : 330 x 206 x 43mm(13.0 x 8.1 x 1.7in)
