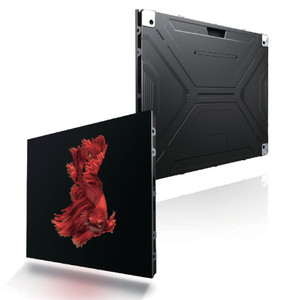

MAXHUB GVB27 Series GV2725 Indoor Customized LED Display (P2.5)

MAXHUB LED Display GV27 Series

Enhance data visualization like never before, with a display built for incredible clarity. The GV27 Series brings data and content to life in any monitoring center, command room, meeting space, or enterprise environment.

Sleek, Stylish, Streamlined

A standardized cabinet ratio design makes the GV27 Series perfect for a host of content-sharing use cases. The ultra-slim and lightweight structure takes up minimal space, without compromising on visual impact. Create a personalized display experience without wasting time, or space. The compact GV27 delivers incredible results in a slim package.

Incredible Visuals

The stunning display, capable of impeccable high-resolution, can present a high-contrast, clear image, even in dull conditions. pixel-perfect clarity means image details as you’ve ever seen them before.

Highly Integrated LED Display

The GV27 series continues to deliver exceptional results use after use, with impeccable reliability, and easy maintenance.

Quick and Easy Installation

The GV27 series continues to deliver exceptional results use after use, with impeccable reliability, and easy maintenance.

MAXHUB OS

Discover the true power of the GV27 Series LED display solution in combination with MAXHUB OS.The built-in Android system supports data reading and writing, LAN screen sharing, and more. The exclusive control system can even adapt the resolution to suit your needs, with support for PIP (picture in picture)/PBP(picture by picture) four-screen split under the 4K controller. The MAXHUB OS is also compatible with third-party control systems.

Technical Specifications

• Physical Parameter
  • Pixel Pitch (mm): 2.5
  • Pixel Composition: SMD2020
  • Panel Resolution (WxH): 240*135
  • Panel Dimension (WxHxDmm): 610*343*31
  • Panel Dimension (WxHxDinch): 24*13.5*1.2
  • Panel Material:
    • Die-Cast Magnesium
    • Aluminum Alloy
  • Panel Weight (kg/unit): 4.8
  • Maintenance method: Front
• Technical Parameters
  • Brightness (cd/㎡): 550
  • Viewing Angle (H/V): 170°/170°
  • Color Gray scale (Bit): 13
  • Refresh Rate (Hz): 3,840
  • Contrast Ratio: 6500
  • Cabinet Maximum Power Consumption (W/Unit): 63
  • Power Input: 100-240V 50/60Hz
  • Lifetime: ≥100,000
