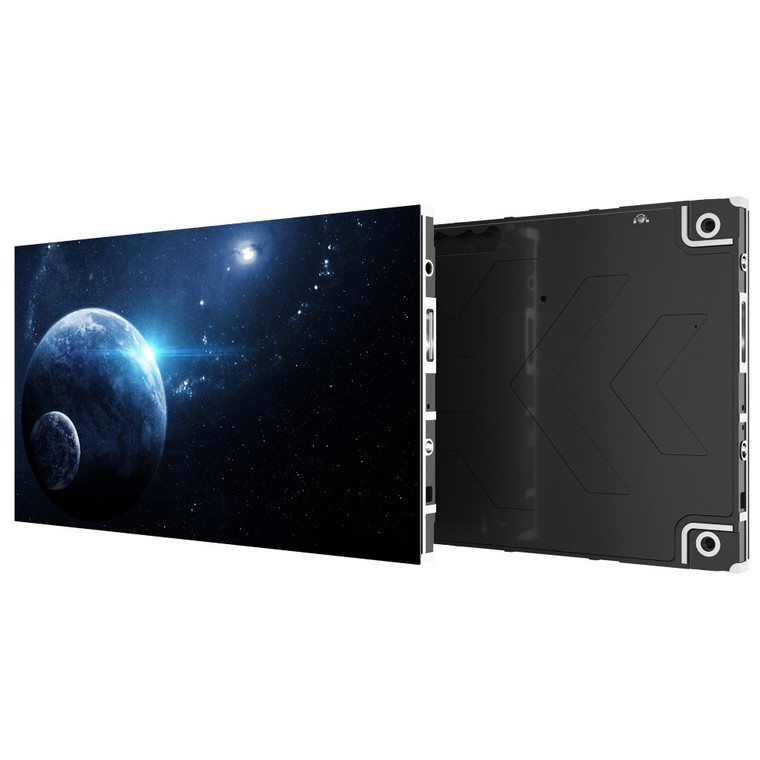

MAXHUB CM27 Series CM2709 Indoor Customized COB LED Display (P0.9)

MAXHUB CM27 Series Display

A New Generation of Mini LED Display Product

Solutions for LED Display

Display products are an important part of the MAXHUB product family. Therefore, we have introduced LED display products that can be used in multiple scenarios. They inherit the characteristics of MAXHUB products, such as easy deployment, easy operation, and easy maintenance which bring users an amazing display experience.

Anti-Collision & Impact Resistant

C27 Series applies COB integrated packaging technology for a smooth screenbwith anti-collision and impact resistance performance.

High Contrast Enables Vivid Color Display

20000 : 1 super high contrast can be achieved with stunning visual effect

Soft Displaying Effect, Eye-care Watching Experience

Screen surface is processed through one-step moulding, providing area-light-like source and soft light emitting effect, lessen visual fatigue even after long-time watching.

Super Wide Viewing Angle Breaks Watching limitations

A super wide viewing angle ≥170° provides a better viewing experience.

Industry-leading 3-in-1 Design

Power supply, receiving card and hub board are integrated on one board without complex wiring, ensuring stable performance.

Technical Specifications

• Physical Parameter
  • LED Type: CPB
  • Pixel Pitch (mm): 09.53
  • Cabinet Size (W×H×D)/(mm): 610*343*31
  • Cabinet Resolution: 640*360
  • Cabinet Weight (kg): 4.4
  • Cabinet Material: Magnalium
  • Module Size (W*H)/(mm): 152.5*171.5
• Optical Parameters
  • Brightness (cd/㎡): 550
  • Viewing Angle (H/V): 170°/170°
  • Color Gray scale (Bit): 15
  • Refresh Rate (Hz): 3,840
  • Driving Type: 1/36
  • Color Temperature (K): 6500
• Electrical Parameters
  • Input Voltage (V): 100-240VAC
  • Power Consumption (Max./Avg.)/(W/m²): 287/97
• Environmental Parameters
  • Storage Temperature (°C): - 10 ~ +60
  • Operating Temperature (°C): - 10 ~ +40
  • Storage Humidity (RH): 10-60%
  • Operating Humidity (RH): 10-85%
  • IP Rating: IP40
  • Maintenance: Front access
