Logitech Extend

Single-cable BYOD connection

Bring your own meeting to the video conferencing room via a single USB-C cable. Logitech Extend gives users the ability to run meetings from their own device using a single USB-C cable. With Logitech Extend, anyone can walk into any room equipped with a Logitech conference camera in Android or BYOD mode, plug in with the USB-C cable, and launch a meeting using their preferred video platform running on their own laptop or mobile device.

Quick connections. No Additional Drivers.

Use the USB-C cable to quickly plug in a laptop or mobile device and run meetings using a preferred video platform. No need to install additional software.

Two Use Cases, One Solution

• BYOD Passthrough: Use Extend in Android-based rooms with the Rally Bar family. It allows the meeting host to bypass the designated video provider and conduct the meeting from their own device.

• BYOD Extension: Use Extend for BYOD meetings with the Rally Bar family and other Logitech conference cameras by connecting a laptop or mobile device to conduct meetings using the in-room conference camera and display.

Extend and Reach

Use category cabling to enable BYOD connections in larger rooms.

1. Table Side Box (TX)
2. Logitech Extend USB-C Connector
3. Optional power adapter
4. Category cable
5. Display Side Box (RX)
6. Rally Bar
7. Logitech Extend power
8. HDMI to camera or display
9. USB to camera
10. USB (additional)

Enable Power Delivery to Devices(optional)

Deliver up to 100W of power to a laptop or mobile device by connecting a standard USB-C power adapter* to the Table Side (TX) box.

*Power adapter not included.

Clean Setup

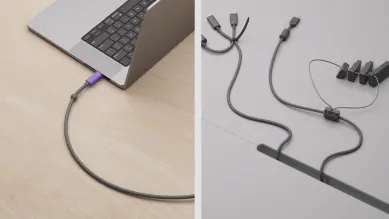

• Single USB-C Cable: Single cable simplicity — no need for multiple cables, adapters, or dongles.

• Magnetic Dock: Rest the USB-C cable on the included magnetic dock for a clean tabletop.

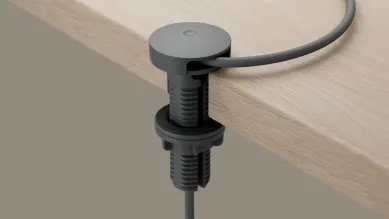

• Grommet Adapter: Easily run the USB-C cable through tables with the included adapter.

Key Features

• Ideal room size: Any room
• Room solution:
  • Microsoft Teams Rooms on Android
  • Zoom Rooms Appliance
  • Google Meet on Android
  • BYOD-only
• Box-to-box cable length:
  • Up to 100 m with Cat6a (user supplied)
  • Up to 60 m with Cat5e/6 (user supplied)
• No additional drivers required
• Power delivery: Up to 100W (user supplied)

Technical Specificaitons

• Device Management: Logitech Sync device management
• Ports and Interfaces:

  • Display Side (RX):

    • HDMI 2.0 4K60 4:4:4
    • 2x USB 2.0 Type A
    • Micro USB Management Interface
    • Logitech Extend Power
    • RJ45 to Table Side (TX)
  • Table Side (TX):

    • Secured USB-C (from TX to user laptop)
    • USB-C (optional USB-C power supply connection)
    • RJ45 to Display Side (RX)
• Mounting

  • VESA: 100 x 100 mm
  • Mounting Holes: 2 through-holes for mounting directly to the wall or table (mounting hardware included)
• Power and Cables

  • Power supply: Auto-sensing
  • Operating Voltage/Power: 100-240V, 48V, 0.5A
  • Power Supply Dimensions: 73.5 mm x 53 mm x 35 mm
  • DC Cable: 1.5 m
  • USB-C to USB-C 3.2 Gen 1 Cable: 1.5 m
  • USB A to Micro USB Cable: 1 m
• Environmental

  • Operating Temperature: 0° to 40° C
  • Storage Temperature: -25° to 70° C
  • Humidity: 10% to 90%
• Security

  • File Based Encryption: NIST SHA-256 bits
  • Data Encryption: Public Key Hash
  • Firmware Update: Digital Signature
• Sustainability

  • Made with recycled plastic: Logitech Extend plastic content: Minimum 40% post-consumer recycled material
  • Responsible Packaging: FSC™-certified paper packaging
• Dimensions

  • Display Side Box:

    • Height: 143 mm
    • Width: 143 mm
    • Depth: 34.5 mm
  • Table Side Box:

    • Height: 143 mm
    • Width: 143 mm
    • Depth: 34.5 mm

Compatibility

• Required

  • Meeting Room Equipment:

    • Displays: HDMI 1.4 or higher
    • AV Devices: USB Type-A 2.0 or higher
  • Laptop Computers: USB Type-C port with DisplayPort Alt Mode
• Compatible with

  • Conferencing Cameras: Rally Bar, Rally Bar Mini, Rally Bar Huddle, MeetUp, MeetUp 2, and more
  • Laptop Operating Systems: Windows 10, Windows 11, macOS (latest 2 versions)

What's Included

• Display Side (RX) Box
• Table Side (TX) Box
• USB-C to USB-C cable
• Micro USB to USB-A cable
• Power supply
• Mounting hardware
• 25.4 mm Grommet adapter
• Magnetic dock
• User documentation
