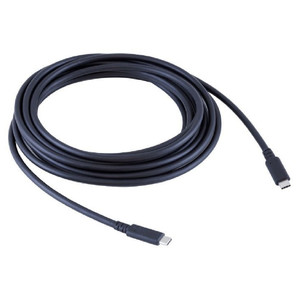

LIGHTWARE 4 m USB-C to USB-C for USB 3.1 Gen 1 Microcoax Technology

This Type-C to Type-C USB cable offers data speeds up to 10Gbps (5Gbps/lane) and allows users to connect their laptop or other devices to Lightware’s USB-C compatible extenders and switchers. The cable’s length of 4m is ideal for most meeting rooms and presenter’s desk applications.

The Microcoax technology makes it possible to send video signals to greater distances with a thinner cable that, combined with the TPE outer jacket, results in more flexible cable that is also less sensitive to noise. Furthermore, low intrapair skew and interpair skew values mean more optimal transmission for DisplayPort Alt mode.

The cables offer low delay and high compatibility with various of USB peripherals such as mouse, keyboard, thumb drive, speakerphone and webcam and are recognized by all major operating systems (Windows, iOS, macOS, Android, Linux)

The cable plug easily fits all USB-C laptop and tablet ports and the lack of bulky repeaters along the cable allows more convenient installation.

The cable proved itself to work with great efficiency with our new USB-C capable Taurus UCX as well as with various source devices. Its reliability, build-quality and technical parameters make this accessory our number one choice forprojects involving USB-C connectivity.

Key Features

• USB3.2 Gen 1x2 10Gbps (5Gbps/lane) "SuperSpeedPlus" (4K Webcam, SSD storage)
• 75µ Gold plated contacts
• eMarker chip electronically programmed
• 5-star USB-C cable with MicroCoax technology enables 4m extension distance
• 10.000 Mating Cycle
• Quick enumeration between USB devices
• Soft touch (TPE outer jacket)
• Supports 4K60 Video
• Cable plug fits all USB-C notebooks and tablets (Connector dimensions according to standard)
• No bulky repeaters along the cable helps installing cable conduit
• Thin and Flexible
• 60Watt / 3A charging and eMarker (Fast Charging of Laptops, tablets and phones)
• Supporting peripherals via USB 2.0 up to 480 Mbps (Mouse, Keyboard, Thumb Drive, Speakerphone and Webcam)
• 4 Lane Displayport Alt mode (4K60FPS Video and Audio)
•

Technical Specifications

• Interface

  • Connectors: 2 xUSB Full-Featured Type-C™ plug
• Technical characteristics
  • Maximum Data Speed: 10Gbps (5Gbps/lane)
  • Maximum Current: 3 A
  • Electronically marked: Yes
  • Compatible with Displayport Alternate Mode: Yes
  • Rating voltage: 30V
  • Rating temperature: 60°C
  • VW-1 flame test: Yes
• Physical characteristics
  • Cable diameter: 5.3 mm
  • Pin coating: Gold-plated
  • Length: 4 m
  • Bending radius: 40 mm
  • Pulling force: 5 kg
  • Color: black
