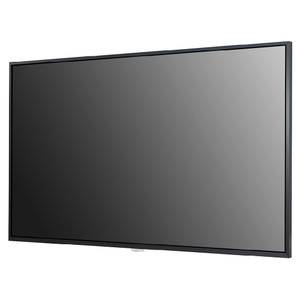

LG 98UH5J-H 98" Ultra HD Standard Signage

LG 98UH5J-H 98" Ultra HD Standard Signage

LG
SKU:
98UH5J-H

Pricing available upon request

Warranty : Local 3 years on site
Current Stock:
Description

A screen showing the meeting’s contents is installed on the meeting room’s wall.

New High Haze UHD Standard Signage

* All images in this web page are for illustrative purposes only.

UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.

Proper Display Brightness

With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.

* Actual images available may differ from the example images shown.

A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.

Conformal Coating

In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.

* Actual images (signage display) available may differ from the example images shown.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

Compatible with AV Control System

The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Surface Treatement (Haze) : 28%
  • Bezel : 14.9 mm (Even bezel)
  • Depth : 86.1 mm
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker

Technical Specifications

  • Panel
    • Screen Size: 98"
    • Panel Technology: IPS
    • Back Light Type: Direct
    • Aspect Ratio: 16 : 9
    • Native Resolution: 3,840 x 2,160 (4K UHD)
    • Refresh Rate: 60 Hz
    • Brightness: 500 nit (Typ.)
    • Contrast Ratio: 1,200 : 1
    • Dynamic CR: 1,000,000 : 1
    • Color gamut: BT709 95%
    • Viewing Angle (H x V): 178 × 178
    • Color Depth: 1.07 Billon Colors (10 bit)
    • Response Time: 8 ms (G to G)
    • Surface Treatment: 28%
    • Life Time (Typ.): 50,000 Hrs
    • Operation Hours (Hours / Days): 24 / 7
    • Portrait / Landscape: Yes / Yes
  • Mechanical Specifications
    • Bezel Color: Black
    • Bezel Width: 14.9 mm (Even Bezel)
    • Weight (Head): 66 kg
    • Packed Weight: 104.5Kg
    • Monitor Dimensions (W × H × D): 2,191.8 × 1,246.8 × 86.1 mm (without Handle and LG Logo)
    • Carton Dimensions (W × H × D) (Box Outer Size): 2,342 × 1,386 × 420 mm
    • Handle: Yes
    • VESA™ Standard Mount Interface: 800 × 400 mm
  • Environment Conditions
    • Operation Temperature: 0 °C to 40 °C
    • Operation Humidity: 10 % to 80 %
  • Power Consumption
    • Typ./Max.: 420 W / 620 W
    • Smart Energy Saving: 294 W
    • DPM: 0.5 W
    • Power off: 0.5 W
    • BTU (British Thermal Unit): 1,434 BTU/Hr(Typ.), 2,117 BTU/Hr(Max)
  • Certification
    • Safety: CB / NRTL
    • EMC: FCC Class “A” / CE / KC
    • ErP: Yes (NewErP)
  • OPS Compatability
    • OPS Type Compatible: No
    • OPS Power Built In: No
  • Software Compatability
    • SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Cloud, SuperSign Media Editor, Mobile CMS, LG ConnectedCare
  • Connectivity
    • Input: HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (HDCP2.2/1.3), DVI-D (HDCP1.4), Audio, RS232C (4pin Phone-jack), RJ45(LAN), IR, USB (USB2.0 Type A(1)), Daisy Chain (HDMI, DP)
    • Output: HDMI, Audio, RS232C (4pin Phone-jack), Daisy Chain (HDMI)
  • Sound
    • Speaker: Yes (10W X 2)
  • Language
    • English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
  • Special Feature
    • Conformal Coating (Power Board): Yes
  • Features
    • Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

What's Included

  • Remote Controller(include battery 2ea)
  • Power Cord
  • QSG
  • Regulation Book
  • Phone to RS232C Gender
  • EYE Bolt
Additional Information
Product Type:
Display
Screen Size:
98"
Resolution:
Ultra HD - 4K
