Lenovo ThinkSmart One + IP Controller for Zoom

Lenovo
SKU:
12BY0004SG
|
UPC:
197532530867

Pricing available upon request

3 Years Warranty.
Current Stock:

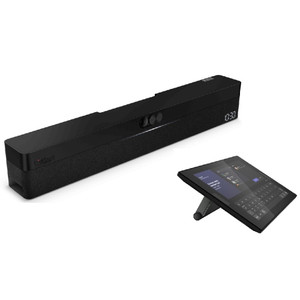

Lenovo ThinkSmart One + IP Controller for Zoom

What every meeting space needs

Lenovo ThinkSmart One + IP Controller for Zoom Rooms makes online meetings run seamlessly. ThinkSmart One is the world’s first Windows-based integrated collaboration solution, with a high-res camera, crystal-clear audio, and powerful computing all in one. It's also Zoom Rooms-certified and comes with Lenovo IP Controller, an intuitive 10-point multitouch HD display with the familiar Zoom interface. Together with the Lenovo Link Box, it’s easier for you to manage meetings and share content, plus improve collaboration, productivity, and efficiency.

Close up of ThinkSmart One for Microsoft Teams Rooms, world's first Windows-based integrated collaboration solution, showing camera and privacy shutter

The smarter way to meet

In today’s hybrid world, it pays to have an immersive space where everyone can be fully engaged, regardless of where they are working from. That’s where ThinkSmart One for Zoom Rooms excels. Its high-res camera has an extra-wide field-of-view and boasts high frame rates that eliminate annoying lag and distortion. Even in low-light environments, it delivers sharp contrast, vivid colors, and brighter images. It also boasts an array of intelligent features, such as auto-zoom, auto-framing, speaker-tracking, people-counting, and whiteboard-awareness.

Side angle of ThinkSmart One for Microsoft Teams Rooms, showing right-side edge & ThinkSmart logo

Because communication goes both ways

To elevate your audio-visual experience, ThinkSmart One for Zoom Rooms delivers exceptionally crisp and clear sound through stereo speakers with a high-volume capacity and wide range. Together with eight integrated mics that have a 180-degree coverage and frequency, plus echo- and noise cancelling technology, this compact form factor is perfect for small-to-mid-sized conference rooms, enabling everyone to be heard loud and clear.

Close up of Lenovo IP Controller, showing Microsoft Teams Rooms interface, on an office desk, next to someone holding a coffee cup, with another person in the background

Engineered to inspire

Fueled by Intel vPro® with 11th Gen Intel® Core™ i5 processors and Intel® Iris® Xe graphics, ThinkSmart One for Zoom Rooms delivers real computing power. For the first year, you can also enjoy ThinkSmart Manager Premium for free*. This cloud-based management software enables your IT teams to remotely access status updates in real time, as well as troubleshoot, configure, and enhance the security of all your ThinkSmart devices.

*Lenovo ThinkSmart One + IP Controller for Zoom Rooms includes one year of ThinkSmart Manager Premium with your purchase. After one year, you can downgrade to ThinkSmart Manager Basic or continue with ThinkSmart Manager Premium for an additional cost.

Teams call setting. Two in-room attendees: one using a Lenovo IP Controller on desk, the other looking at a Lenovo ThinkPad laptop, with ThinkSmart One for Microsoft Teams Rooms mounted on wall under monitor showing online attendees.

Ingeniously simple

The Lenovo IP Controller is a smart, easy-to-use 10.1″ touchscreen with an antiglare, antifingerprint display. In addition to the familiar Zoom Rooms interface, it has a one-touch join option so you can get Zoom calls up and running quickly. It transmits data and power over a single network cable up to 100 meters / 328 feet, so there’s no need for an AC adapter. Plus, those in the conference room can connect their laptops wirelessly or directly via an HDMI cable to share their screens.

Teams call setting: Two in-room attendees sat opposite, both using Lenovo ThinkPad X1 laptop, with Lenovo IP Controller on desk and ThinkSmart One for Microsoft Teams Rooms mounted on wall under monitor showing online attendees

Neat & clean

Rather than clutter up a desk or conference table, both the ThinkSmart One for Zoom Rooms integrated bar and Lenovo IP Controller can be mounted on a wall. ThinkSmart One includes a wall-mount bracket that allows the bar to be easily tilted up or down by 10 degrees, to best accommodate the room. And, when mounted, the bracket remains hidden for a cleaner look.

Key Features

  • The world’s first Windows-based collaboration bar
  • Integrated bar with Windows IoT computing, FHD camera, & premium audio
  • Powered by 11th Gen Intel® Core™ processors with vPro®
  • 10.1″ HD controller with one-touch join function
  • Easy to use, manage, & configure via complimentary ThinkSmart Manager Premium
  • Ideal for small-to-medium-sized workspaces

Product Specifications

  • ThinkSmart One for Zoom Rooms
    • Processor: 11th Generation Intel® Core™ i5-1145G7E Processor with vPro® (1.50 GHz, up to 4.10 GHz with Turbo Boost, 4 Cores, 8 Threads, 8 MB Cache)
    • Operating System: Windows IoT Enterprise SAC
    • Graphics: Intel® Iris® Xe Graphics
    • Memory: 8GB DDR4 3200MHz
    • Storage: 256GB PCIe Gen 4 SSD
    • Connectivity:
      • WiFi 6 802.11 AX (2 x 2)
      • Bluetooth® 5.0 (low energy)
      • 2 x Ethernet (RJ45)
    • Ports & Slots:
      • HDMI in
      • 2 x HDMI out
      • 2 x USB-A 3.2 Gen 1 (with DisplayPort function)
      • USB-C 2.0 Gen 1 (Used for controller connection)
      • USB-C 3.2 Gen 1
      • 2 x RJ Ethernet (RJ45)
      • 3.5mm Headphone / mic combo
      • DC power in
      • * USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.
    • ThinkShield Security
      • Trusted Platform Module (TPM) 2.0
      • Integrated cable management
      • Kensington Security Slot™
    • Audio:
      • 2 x speakers
      • 85+/3dB sound pressure level (SPL)
      • 15W rated power
      • 48kHz speaker sampling rate
      • 30hms impedance
    • Microphones
      • 8 x mics
      • 6m / 19.69ft pickup range
      • -35dBFS sensitivity
    • Camera:
      • FHD 1080p
      • 125° diagonal, 100° horizontal, & 68° vertical field of view
    • Dimensions (H x W x D): 89mm x 700mm x 115mm / 3.5″ x 27.56″ x 4.53″
    • Weight: 3.61kg / 7.9lbs
  • Color: Black
  • Lenovo IP Controller
    • Display: 10.1″ HD (1280 x 800) 10-point touchscreen, 16:10 aspect ratio, rotatable 30° & 60°, < 340 nits, antiglare, antifingerprint
    • Ports & Slots
      • Ethernet (RJ45)
      • HDMI in
      • USB-C 2.0
    • Security: Kensington Security Slot™
    • Dimensions (H x W x D): 99mm x 251mm x 160mm / 3.9″ x 9.9″ x 6.3″
    • Weight: 1.5kg / 3.3lbs
    • Color: Black
  • Lenovo Link Box
    • Ports & Slots:
      • Power Connector
      • Ethernet (RJ45)
      • HDMI out
      • USB-B 2.0
    • Dimensions: 27mm x 210mm x 96mm / 1.06″ x 8.27″ x 3.78″
    • Weight: 212g /0.46lbs
    • Color: Black
  • Other Information
    • Preloaded Software:
      • ThinkSmart Manager
      • Zoom Rooms
    • Warranty:
      • 3-year Lenovo Premier Support
      • 1-year ThinkSmart Collaboration Professional Services – Deploy & Maintain
    • Other: 1-year Thinksmart Manager Premium

Ports and Slots

Left- and right-facing rear views of ThinkSmart One for Microsoft Teams Rooms, with ports and slots labelled

Left- and right-facing rear views of Lenovo IP Controller, with ports and slots labelled

Front and rear views of Lenovo Link Box, with ports and slots labeled

  1. Volume up / down
  2. Headphone / mic combo
  3. 2 x Ethernet (RJ45)
  4. HDMI in
  5. 2 x HDMI out
  6. DC Power in
  7. 2 x USB-A 3.2 Gen 1 (with DisplayPort function)
  8. USB-C 3.2 Gen 1
  9. Kensington MiniSaver® lock slot
  10. USB-C 2.0 Gen 1 (Used for controller connection)
  11. Kensington Security Slot™
  12. Reset button
  13. Ethernet (RJ45)
  14. USB-C 2.0
  15. HDMI in
  16. HDMI out
  17. USB-B 2.0
  18. DC power in
  19. Ethernet (RJ45)

Whats in the box?

  • ThinkSmart One for Zoom Rooms
  • Lenovo IP Controller
  • Wall mount bracket & screws for ThinkSmart One for Zoom Rooms
  • 135W power adapter
  • Power adapter for Lenovo Link Box
  • Lenovo Link Box
  • Ethernet cable (RJ45, Cat5e, 5m)
  • 2 x HDMI cables (2m cable for PC screen sharing, 1m cable for connecting host PC & Link)
  • USB-A to USB-B cable (1m for connecting host PC & Lenovo Link Box)
  • Quick Start Guide
Product Type:
Video Conferencing
Video Camera Resolution:
Ultra HD - 4K
Features:
Zoom, UC & Others
