Lenovo ThinkSmart Core Gen 2 Full Room Kit + IP Controller for Microsoft Teams Rooms, 16GB RAM, 256GB SSD

Lenovo ThinkSmart Core Gen 2 Full Room Kit + IP Controller for Microsoft Teams Rooms

EXPERIENCE AN AI-OPTIMIZED CONFERENCE ROOM SYSTEM

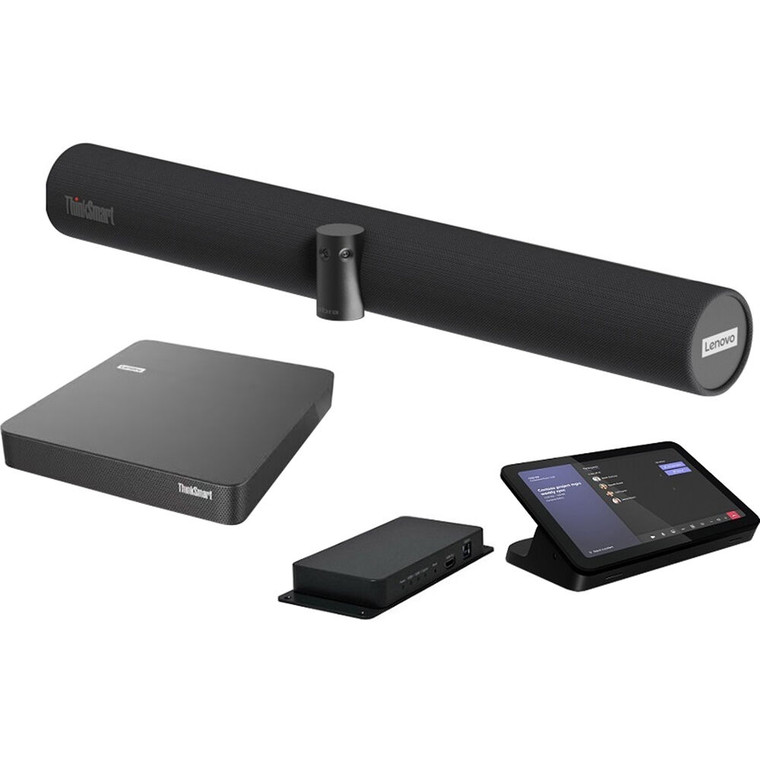

The ThinkSmart Core Gen 2 IP Full Room Kit for Microsoft Teams is ideal for your medium and large meeting spaces. The kit includes the Core Gen 2 compute device, the Lenovo IP Controller with Link Box, and the ThinkSmart Bar 180 soundbar. Plus, it’s powered by an Intel® Core™ Ultra 5 processor, delivering reliable performance, AI-based productivity features, and seamless collaboration.

Ideal for Medium and Large Conference Rooms

The Lenovo IP Controller works with a Link Box to provide a clean conferencing solution. It boasts a single-cable connection for both power and data, with easy installation. Position the controller on the table to effortlessly connect a laptop via HDMI cable or mount it on a wall up to 100 meters / 330 feet away from the ThinkSmart Core.

Keep the Focus on the Meeting Speakers

The ThinkSmart Bar 180 boasts AI-enabled cameras and voice detectors, which automatically focus on people speaking. Experience immersive audio with noise cancellation and echo reduction — enjoy crystal-clear communication. Plus, real-time whiteboard streaming enhances remote teamwork and note-taking.

KeyFeatures

Technical Specifications

• ThinkSmart Core Gen 2 for Microsoft Teams Rooms
  • Processor : Intel® Core™ Ultra 5 135H vPro® Processor (E-cores up to 3.60 GHz P-cores up to 4.60 GHz)
  • Operating System : Windows 11 IoT Enterprise for Collaboration GAC 64
  • Graphic Card : Integrated Intel® Arc™ Graphics
  • Memory : 16 GB DDR5-5600MT/s (SODIMM)(2 x 8 GB)
  • Storage : 256 GB SSD M.2 2280 PCIe Gen4 TLC Opal
  • Display : 10.1" HD (1280 x 800), Anti-Glare, Anti-Smudge, Touch, 340 nits
  • AC Adapter / Power Supply : 170W
  • WIFI : Intel® Wi-Fi 6E AX211 2x2 AX vPro® & Bluetooth® 5.3
  • Connectivity
    • WiFi 6E* 802.11AX (2 x 2)
    • Bluetooth® 5.3
    • Ethernet (RJ45)
  • Ports & Slots
    • HDMI Ingest
    • 2 x HDMI out
    • Ethernet (RJ45)
    • 3 x USB-A (USB 5Gbps)
    • USB-A (hi-speed USB)
    • 2 x USB-C® (USB 10Gbps)
    • USB-C® Ingest
    • DC power in
  • Dimensions (H x W x D): 38mm x 220mm x 185mm / 1.50″ x 8.66″ x 7.28″ (with cable management)
  • Weight: Starting at 1.01kg / 2.23lbs
  • Color: Black
• Lenovo IP Controller
  • Display:
    • 10.1″ HD (1280 x 800) 10-point touchscreen, 16:10 aspect ratio, < 360nit, antiglare, antifingerprint
    • Rotatable 30° & 60°
  • Ports & Slots:
    • Ethernet (RJ45)
    • USB-C® (USB 5Gbps)
    • HDMI in
  • Security: Kensington Security Slot™
  • Dimensions (H x W x D): 248mm x 151mm x 100mm / 9.76” x 5.94” x 3.94”
  • Weight: Starting at 0.97 kg / 2.16 lbs
  • Color: Black
• Lenovo Link Box
  • Ports & Slots:
    • DC power in
    • Ethernet (RJ45)
    • HDMI out
    • USB-B 2.0
  • Dimensions (H x W x D): 27mm x 210mm x 96mm / 1.06" x 8.27" x 3.78"
  • Weight: Starting at 212g / 0.46lbs
• ThinkSmart Bar 180
  • Audio:
    • 2 x stereo speakers
    • 2 x tweeters
    • Stereo audio out
    • 80Hz-20kHz frequency
  • Microphones:
    • 8 x built-in beamforming mics
    • 100Hz-8kHz frequency
    • Up to 37dB sensitivity
  • Camera:
    • 3 x cameras
    • 54-degree vertical field-of-view
    • 180-degree horizontal field-of-view
    • Up to 6 x lossless digital zoom
    • Intelligent zoom
    • UHD (3840 x 1080), 32:9 aspect ratio
  • Connectivity:
    • Audio jack
    • USB-C® (USB 5Gbps)
    • Ethernet (RJ45)
    • Bluetooth® 5.3
  • Mounting Options: Mount on wall, TV, or display* (*Wall bracket & display mounting hardware included)
  • Dimensions (H x W x D): 650mm x 80mm x 125mm / 25.6" x 3.1" x 4.9"
  • Weight: Starting at 2.19kg / 4.85lbs
  • Color: Black
