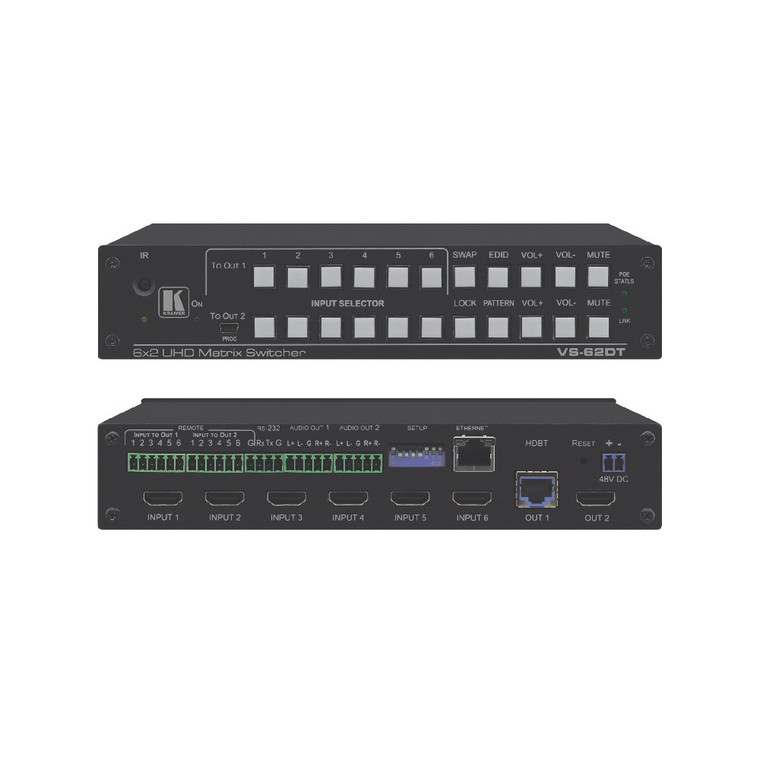

Kramer VS-62DT 6x2 4K60 4:2:0 HDMI/HDBaseT Long–Reach PoE Matrix Switcher

VS−62DT is a 6x2 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher with HDMI and HDBaseT output transmitters that provide long−reach video and audio transmission. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.

•  Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
•  Max. Resolution — 4K@60Hz (4:2:0).
•  HDCP 1.4 Support.
•  3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.
•  Routing — Six HDMI inputs can be routed to an HDMI and HDBaseT output.
•  Power–over–Ethernet — Supply of PoE to compatible receivers.
•  EDID Capture — Copies and stores the EDID from a display device per input.
•  Programmable Step–in Functionality — When used together with compatible step–in devices, such as the SID–X3N and DIP–31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
•  True Video Clock Detection.
•  Advanced Auto AV Switching — Last connected and priority switching modes.
•  Non–Volatile EDID Storage.
•  Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
•  Lock Button — Prevents tampering with front panel buttons.
•  Internal Pattern Generator.
•  Kramer Protocol 3000 Support.
•  Static or Dynamic DHCP IP Addressing.
•  Flexible Control Options — Front panel buttons, RS–232, Ethernet, contact closure, embedded Web server and step–in.
•  Mini–USB Port — For upgrading firmware.

Key Features

• 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher
• Resolutions up to 4K@60Hz (4:2:0) and WUXGA

Technical Specifications

• Inputs: 6 HDMI connectors
• Outputs: 1 HDMI connector, 1 HDBT on an RJ–45 connector
• Ports: 1 Ethernet on an RJ–45 connector, 12 remote selection contact–closure switches on 13 terminal block pins, 1 serial port on a 3–pin terminal block, 1 program port on a mini USB
• Analog Audio: 2 balanced stereo audio on 5–pin terminal blocks
• Bandwidth: Up to 8.91Gbps data rate (2.97Gbps per graphic channel)
• Compliance with HDMI Standard: HDCP 1.4
• Resolution: Up to 4K@60Hz UHD (4:2:0)
• Supported Baud Rates: 9600, 115200bps
• Power Consumption: 48V DC 360mA
• Controls: Front panel buttons, RS 232, Ethernet, remote input selection switches and LEDS, built–in Web browser
• Operating Temperature: 0° to +40°C (32° to 104°F)
• LED Indicators: IR active — red, ON — green
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Product Dimensions: 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
• Product Weight: 1.0kg (2.3lbs) approx.
• Shipping Dimensions: 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
• Shipping Weight: 1.7kg (3.7lbs) approx.

What's Included

• Power supply
