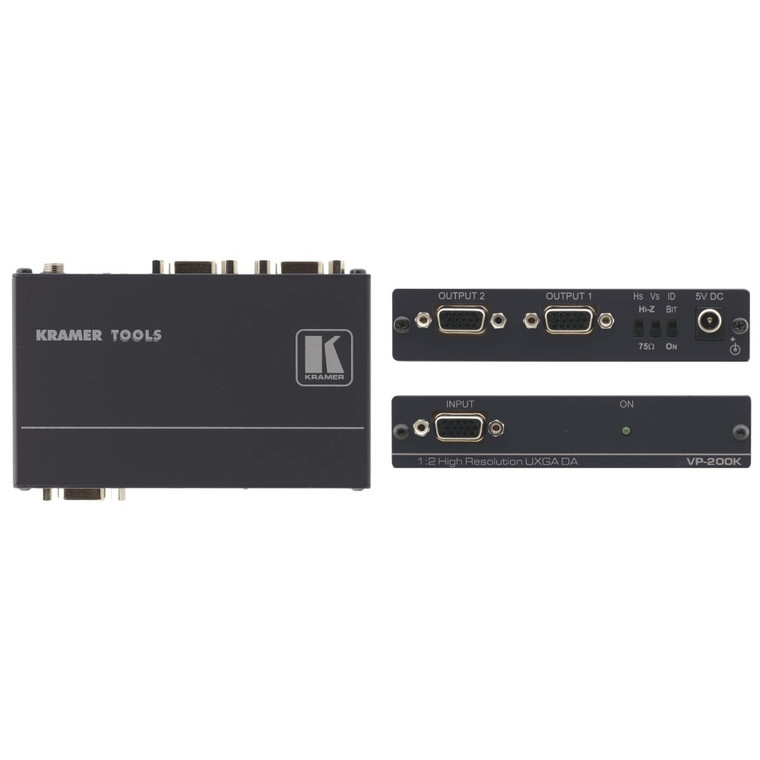

Kramer VP-200K 1:2 Computer Graphics Video Distribution Amplifier

The VP−200K is a distribution amplifier for computer graphics signals up to and exceeding UXGA. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.

•  High Bandwidth — 400MHz (–3dB).
•  HDTV Compatible.
•  ID Bit Control.
•  Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
•  EDID PassThru — Passes EDID signal from display to source via output 1.
•  Selectable Sync Input Impedance — 75Ω (video), 510Ω (Graphics/TTL).
•  DC Coupling.
•  3ft 15–pin HD Cable Included.

Key Features

• Bandwidth — 400MH
• Selectable Sync Input
• ID Bit Control
• DC Coupling

Technical Specifications

• Input: 1 UXGA on an 15–pin HD connector
• Outputs: 2 UXGA on 15–pin HD connectors
• Max. Output Level: 2.2Vpp
• Bandwidth (-3dB): 400MHz
• Diff. Gain: 0.03%
• Diff. Phase: 0.03Deg
• K-Factor: <0.05%
• S/N Ratio: 72dB @5MHz
• Controls:
  • ID BIT switch
  • Analog/TTL switches for setting the sync
• Coupling: DC
• Power Consumption: 5V DC, 130mA
• Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
• Shipping Dimensions: 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
• Shipping Weight: 0.7kg (1.5lbs) approx.
• Product Weight: 0.2kg (0.4lbs) approx.

What's Included

• Power supply (5V/2.6A)
• Mounting bracket
