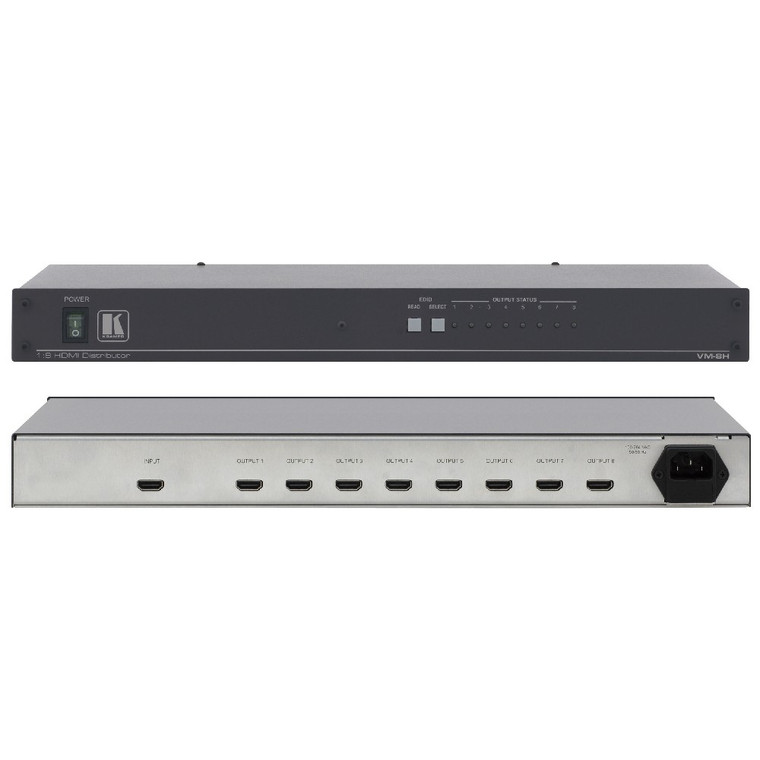

Kramer VM-8H 1:8 HDMI Distribution Amplifier

The VM−8H is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to 8 identical outputs.

•  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
•  HDTV Compatible.
•  HDCP Compliant.
•  HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
•  3D Pass–Through.
•  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  Active Output LED Indicators.
•  Worldwide Power Supply — 100–240V AC.
•  Standard 19” Rack Mount Size — 1U. Rack "ears" included.

Key Features

• Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
• HDCP Compliant
• Enhanced EDID

Technical Specifications

• Input: HDMI connector
• Outputs: 8 HDMI connectors
• Bandwidth: 6.75Gbps (2.25Gbps per graphic channel)
• Compliance with HDMI Standard: Supports HDMI and HDCP
• Controls: SELECT and READ buttons for selecting and storing EDID information
• Indicator LEDs: Output Status 1 to 8
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Power Consumption: 100–240V AC, 50/60Hz 28VA
• Product Dimensions:

  • 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
  • 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
• Product Weight:

  • 1.7kg (3.8lbs) approx.
  • 1.8kg (4.0lbs) approx.
• Shipping Dimensions:

  • 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
  • 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
• Shipping Weight:

  • 2.7kg (5.9lbs) approx.
  • 2.1kg (4.6lbs) approx.

What's Included

• Power cord
