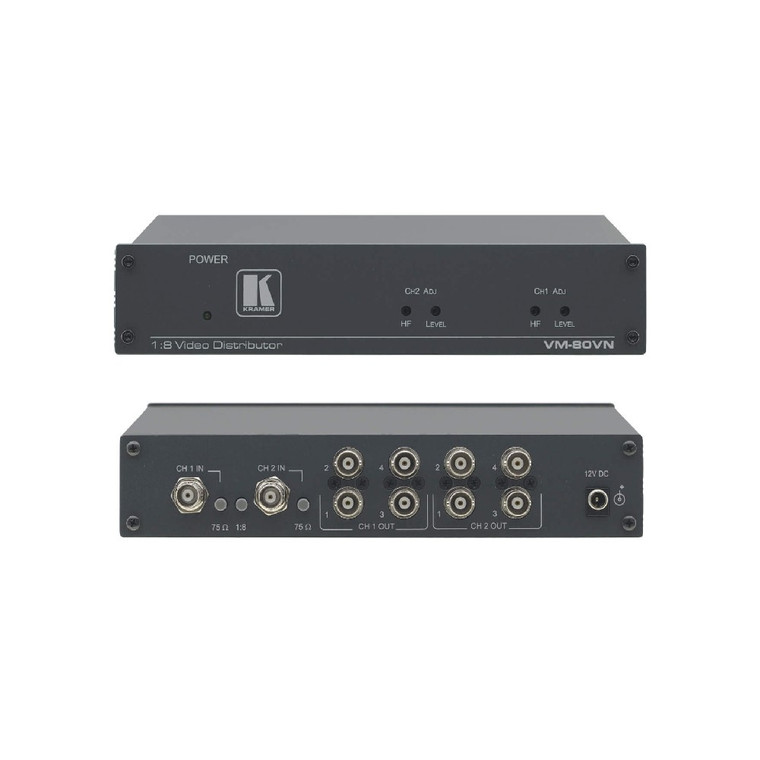

The VM−80VN is a high−performance distribution amplifier for composite or SDI signals. It can also be configured as a 1:4 DA for s−Video (Y/C) signals and has controls to compensate for signal losses inherent in long cable runs.
- High Bandwidth — 330MHz (–3dB).
- Level (Gain) and EQ (Peaking) Controls.
- Dual–Mode — Configure as either a 1:8 (composite) or 1:4 (s–Video) DA.
- Video AC/DC Coupling — Internally selectable.
- Companion Unit to the VM–80A Audio DA.
Key Features
- Bandwidth — 330MHz (–3dB)
- Level & EQ Controls
- Rack Kit — RK–1
Technical Specifications
- Inputs: 2 composite/SD–SDI video, 1Vpp/75Ω on BNC connectors with termination switches
- Outputs: 2x4 composite/SD–SDI video, 1Vpp/75Ω on BNC connectors
- Max. Output: 2Vpp
- Video Bandwidth (-3dB): 330MHz
- Diff. Gain: 0.12%
- Diff. Phase: 0.5Deg
- K-Factor: <0.05%
- S/N Ratio: 74dB
- Control: 75Ω termination switch, 1:8 or 2x1:4 selector switch
- Non-Linearity: 0.1%
- Coupling: DC or AC (internal selection)
- Power Consumption: 12V DC, 50mA
- Product Dimensions: 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
- Product Weight: 1.0kg (2.1lbs) approx.
- Shipping Dimensions: 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
- Shipping Weight: 1.4kg (3.0lbs) approx.
What's Included
- Power cord
