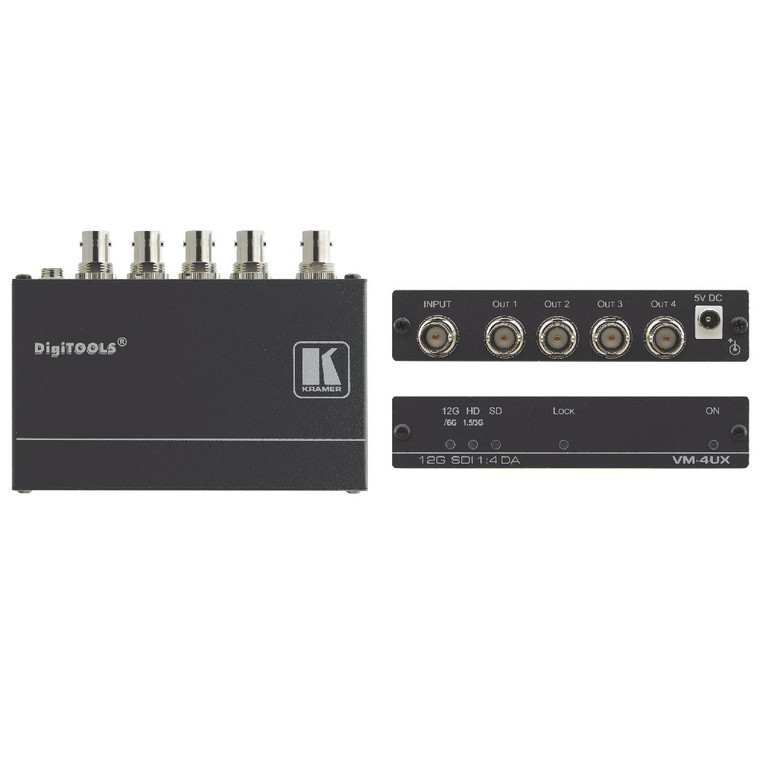

The VM−4UX is a compact and high performance 1:4 4K distributor for standard broadcast−grade SDI signals of up to 12G transmitted data rate. It auto−adapts to the data rate of one SDI input signal, equalizes and re−clocks the signal to improve transmitted signal reach, and distributes the signal to four identical SDI outputs.
- Reliable Wire Connectivity — Coaxial broadcast–grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
- Extended–reach Input Extension — Input signal equalization and output signals reclocking to gain extended–reach signal extension. Using Kramer high–quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (262ft) for 12G 4K signals.
Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non–Kramer coaxial cables. - Transmitted Data Rate — Auto–adapting from 270Mbps to 12Gbps data rates.
- Compliance — Complies with SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) standards.
- Max. Resolution — 4K@60Hz (4:2:2) 30bpp.
- SDI Signal Transmission — SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI compliant signals, supporting pass–through of standard embedded audio channels with ancillary ID and metadata information.
- LED Indicators — Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
- Easy Installation — Compact DigiTOOLS™ fan–less enclosure for small footprint spaces and over–ceiling mounting, or side–by–side rack mounting.
Key Features
- 1:4 SDI distributor
- Resolution — Up to 4K (4:2:2) 30bpp
- Data rate — Auto–adapting, up to 12Gbps
- Input Reach — Up to 80m (260ft) at 12Gbps
- Compliance — SMPTE standards
- Lockable connections
Technical Specifications
- Inputs: 1 SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST–2082 (12G–SDI) compliant serial video, 75Ω on a BNC connector
- Outputs: 4 equalized and reclocked SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI) and ST 2082 (12G–SDI), outputs 75Ω on BNC connectors
- Cable Equalization Reach: 12Gbps: Up to 80m (260ft), 3Gbps and 6Gbps: Up to 100m (330ft), 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft), Note: The above specs apply when using Kramer cables
- Video: Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate
- Maximum Output Level: 800mVpp /75Ω
- Coupling: AC
- Standards Compliance: SMPTE 259M (SD–SDI), 292M (HD–SDI), 344M (ED–SDI), 424M (3G HD–SDI), ST–2081 (6G–SDI), ST–2082 (12G–SDI)
- Power Consumption: 5V DC, 250mA
- Power Source: 5.2V/4A
- Enclosure: Tools size, Aluminum type
- Cooling: Convection ventilation
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
- Product Weight: 0.2kg (0.4lbs) approx.
- Shipping Dimensions: 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H
- Shipping Weight: 0.7kg (1.5lbs) approx.
What's Included
- Power supply
- Mounting bracket
- 2 male BNC 75Ω terminators
