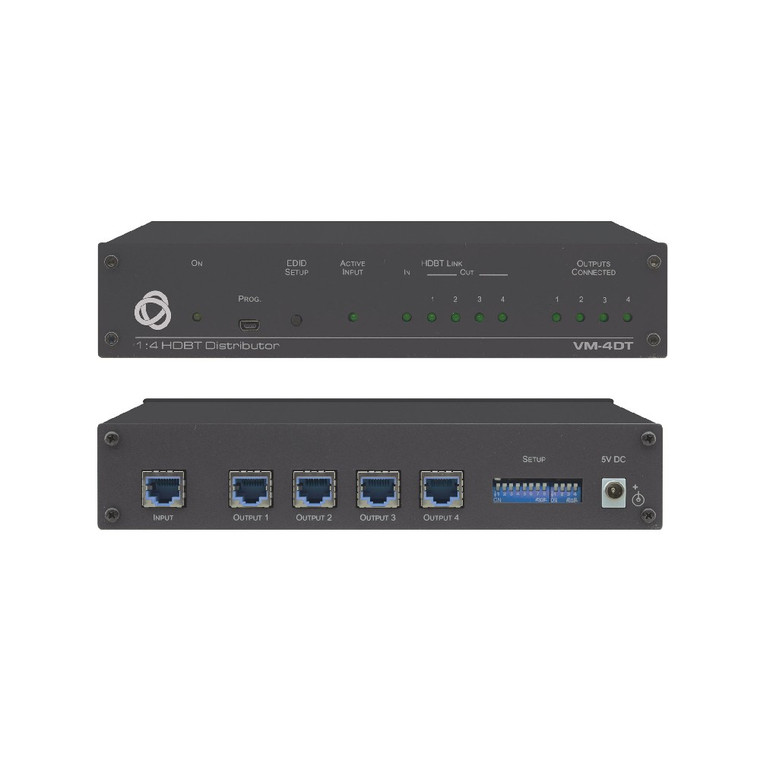

Kramer VM-4DT 1:4 4K60 4:2:0 Long–Reach HDBaseT DA

VM−4DT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one long−reach HDBaseT input, equalizes and reclocks the signal and distributes it to four identical HDBaseT outputs. VM−4DT distributes native HDBaseT signals with up to 4K video resolution, along with their re−extension over HDBaseT.

•  High Performance Distribution — Distributes one native, long–reach HDBaseT signal to four outputs with up to 4K video resolution, along with their re–extension over HDBaseT.
•  Dual–side Extension — Extends a 4K@60Hz (4:2:0) 24bpp (maximum) video signal to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions, when deployed mid–way between an AV source and multiple remote acceptors using CAT copper cable.
•  Standard Compatibility — Connects to any HDBaseT compliant extension product on the market.
•  HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
•  I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
•  LED Indicators — Status indicators for HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
•  Easy Installation — Twisted–pair cables for HDBaseT signals wiring. Standard half–width 19” rack (1U) fan–less enclosure for side–by–side mounting of 2 units in a 1U rack space with included rack mounting–ears.

Key Features

• 1:4 extender distributor
• Up to 4 x 70m (230ft) at 1080p
• Up to 4 x 40m (130ft) at 4K (4:2:0)
• Up to 4K (4:2:0) 24bpp video resolution
• HDCP 1.4, HDBaseT 1.0 compliance

Technical Specifications

• Input: 1 HDBT on an RJ–45 female connector
• Outputs: 4 HDBT on RJ–45 female connectors
• Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
• Range Extension (Input or Output Each Side):

  • Up to 40m (130ft) at 4K@60Hz (4:2:0),
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp),
  • Note: When using Kramer HDBaseT cables
  • Max. Video Resolution
  • 4K@60Hz (4:2:0) 24bpp
• Compliance: Supports HDCP 1.4 and HDBaseT 1.0
• HDMI Support: Deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
• Controls

  • EDID setup button, indicator LEDS: OUTPUTS 1–4
  • LINK 1–4 active input, power on
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Power Consumption:

  • Power source: 5.2V DC, 4A
  • Power consumption: 5V DC, 3.5A
• Enclosure: Desktop size, Aluminum type
• Cooling: Fan ventilation
• Product Dimensions: 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
• Product Weight: 1.0kg (2.1lbs) approx.
• Shipping Dimensions: 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
• Shipping Weight: 1.5kg (3.3lbs) approx.

What's Included

• Power supply
