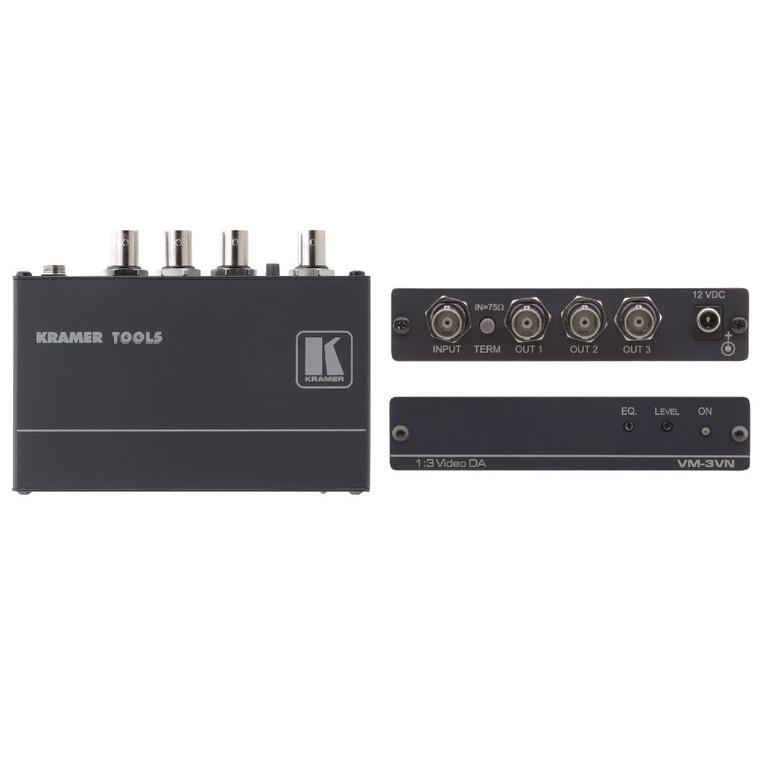

Kramer VM-3VN 1:3 Composite Video Distribution Amplifier
KramerPricing available upon request
The VM-3VN is a distribution amplifier for composite video signals. The unit takes one input, provides correct buffering and isolation and distributes the signal to three identical outputs.
- High Bandwidth — 430MHz (–3dB).
- Selectable Input Signal Termination.
- Level (Gain) & EQ (Peaking) Controls.
Key Features
- Bandwidth — 430MHz (–3dB)
- Level & EQ Control
Technical Specifications
- Input: 1 composite video on a BNC connector
- Outputs: 3 composite video on BNC connectors
- Max. Output Level: 1.8Vpp
- Bandwidth (-3dB): 430MHz
- Diff. Gain: 0.12%
- Dif. Phase: 0.03Deg
- K-Factor: <0.05%
- S/N Ratio: 74.3dB
- Control:
- Level: — 1.6 to +6dB
- Equalization: 0 to +6dB
- Coupling: AC
- Power Consumption: 12V DC, 27mA
- Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
- Product Weight: 0.2kg (0.5lbs) approx.
- Shipping Dimensions: 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
- Shipping Weight: 0.5kg (1.1lbs) approx.
What's Included
- Power supply
- Mounting bracket
- Product Type:
- Amplifiers
