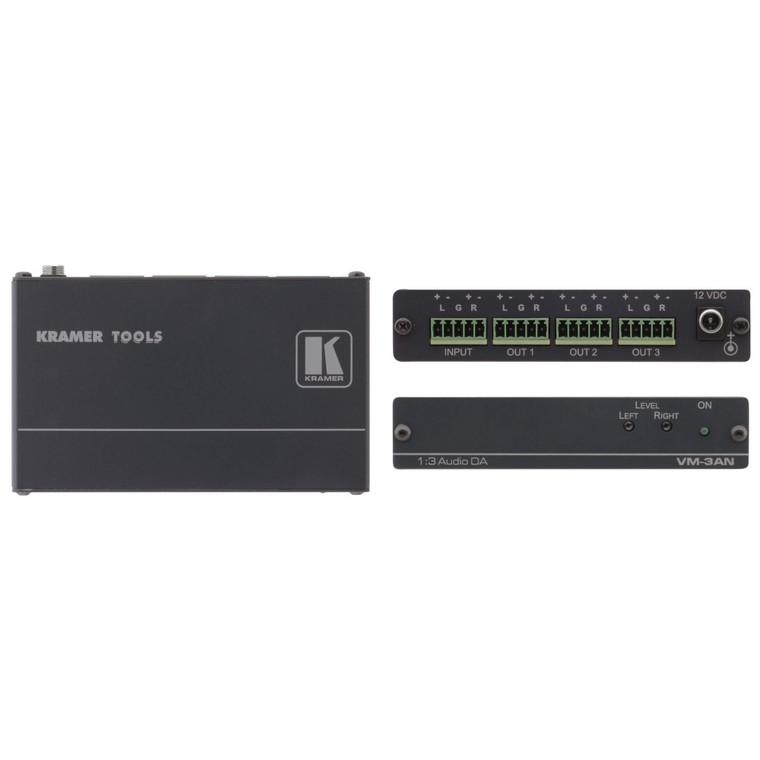

Kramer VM-3AN 1:3 Balanced Stereo Audio Distribution Amplifier

Kramer
SKU:
11-70797090

Pricing available upon request

Current Stock:

The VM-3AN is a high-performance distribution amplifier for balanced stereo audio signals. The unit takes one stereo input and distributes the signal to three identical outputs.

  •  S/N Ratio — 90dB.
  •  L & R Level (Gain) Controls.

Key Features

  • L & R Level Controls

Technical Specifications

  • Input: 1 balanced stereo audio on a 5–pin terminal block
  • Outputs: 3 balanced stereo audio on 5–pin terminal blocks
  • Max. Output Level: Audio: 18.5Vpp
  • Bandwidth (-3dB): >100 kHz
  • S/N Ratio: 90dB @1kHz
  • Control: Output level control:–77 to +6dB, R+/–, L+/ — channels
  • Audio THD + Noise: 0.008%
  • Audio 2d Harmonic: 0.001%
  • Power Consumption: 12V DC, 89mA
  • Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
  • Product Weight: 0.2kg (0.4lbs) approx.
  • Shipping Dimensions: 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
  • Shipping Weight: 0.5kg (1.1lbs) approx.

What's Included

  • Power supply
Product Type:
Amplifiers
