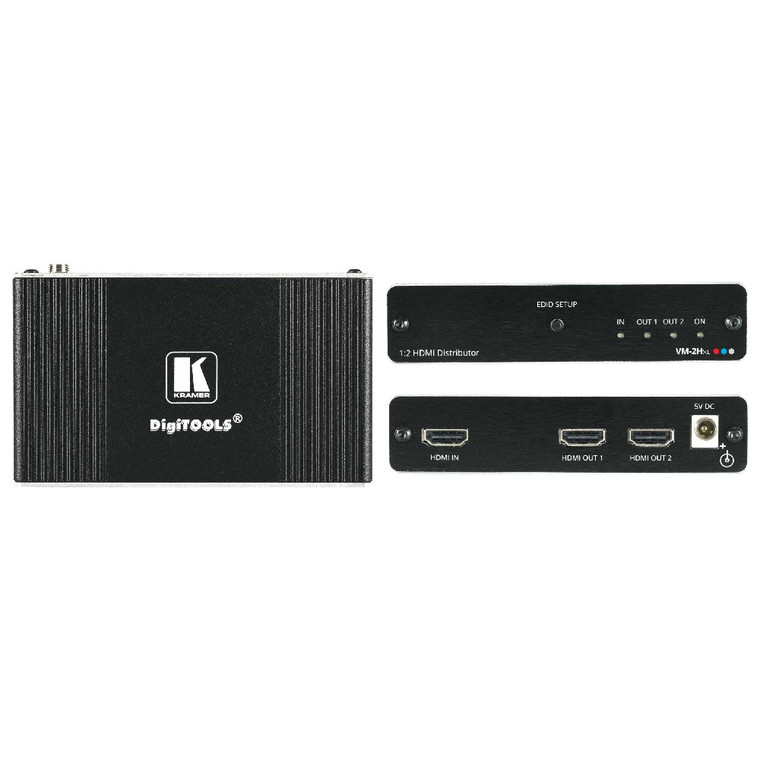

Kramer VM-2HXL 1:2 HDMI Distribution Amplifier

The VM−2Hxl is a distribution amplifier for HDMI signals. The unit reclocks and equalizes the signal and distributes it to two identical outputs.

*  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
*  HDTV Compatible.
*  HDCP Compliant.
*  HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
*  3D Pass–Through.
*  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
*  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
*  Active Output LED.
*  Compact DigiTOOLS® — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

Key Features

* Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
* Enhanced EDID

Technical Specifications

* Input: 1 HDMI connector
* Outputs: 2 HDMI connectors
* Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel)
* Compliance with HDMI Standard: Supports HDMI and HDCP
* Controls: EDID SETUP button, input select button
* Indicator LEDs: IN 1, IN 2, OUT 1, OUT 2, and ON LEDs
* Power Consumption: 5V DC, 910mA
* Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
* Product Weight: 0.2kg (0.4lbs) approx.
* Shipping Dimensions: 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
* Shipping Weight: 0.5kg (1.1lbs) approx.

What's Included

* Power supply
* Bracket installation kit
