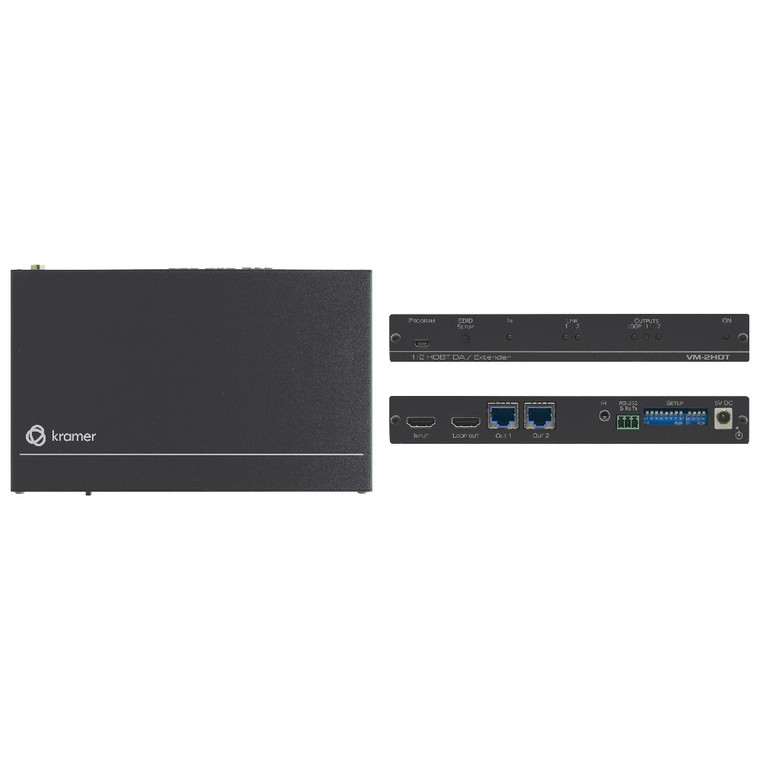

Kramer VM-2HDT 1:2+1 4K60 4:2:0 HDMI to Long–Reach HDBaseT DA

VM−2HDT is a high−quality, long−reach 1:2 HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts it to an HDBaseT extension line signal and distributes it to 2 HDBaseT outputs that connect to compatible HDBaseT receivers. VM−2HDT includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.

•  High Performance Distribution — Distributes one HDMI signal to two long–reach HDBaseT extension outputs with up to 4K video resolution, and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
•  Extension–line Distribution — Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions.
•  Standard Compatibility — Connects to any HDBaseT compliant extension product on the market.
•  HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
•  I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
•  User–Friendly Operation — Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
•  Easy Installation — Twisted–pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.

Key Features

• 1:2 HDMI extender distributor
• Up to 70m (230ft) at 1080p
• Up to 40m (130ft) at 4K (4:2:0)
• Up to 4K@60Hz (4:2:0) 24bpp video resolution
• HDCP 1.4, HDBaseT 1.0 compliance

Technical Specifications

• Inputs: 1 HDMI: On an HDMI female connector
• Outputs:

  • 2 HDBT: On RJ–45 female connectors
  • 1 Loop HDMI: On an HDMI female connector
• Ports:

  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 RS−232: On a 3–pin terminal block for serial link extension
• Video:

  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: Up to 4K@60Hz (4:2:0) 24bpp
  • Standards Compliance: Supports HDCP 1.4 and HDBaseT 1.0
  • HDMI Support: Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
• Extension Line:

  • Up to 40m (130ft): At 4K@60Hz (4:2:0) (when using Kramer HDBaseT cables)
  • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp) (when using Kramer HDBaseT cables)
• User Interface:

  • Indicator LEDs: Outputs, inputs, communication link and power
  • Controls: EDID setup button, 12 setup DIP switches
  • 1 RS-232: On a Mini–USB female connector for firmware upgrade
• Power:

  • Source: 5.2V DC, 4A
  • Consumption: 5V DC, 1.6A
• Enclosure:

  • Size: MegaTool
  • Type: Aluminum
  • Cooling: Convection ventilation
• Environmental Conditions:

  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
• Product Dimensions: 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
• Product Weight: 0.5kg (1.0lbs) approx.
• Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
• Shipping Weight: 1.3kg (2.8lbs) approx.

What's Included

• Power supply
