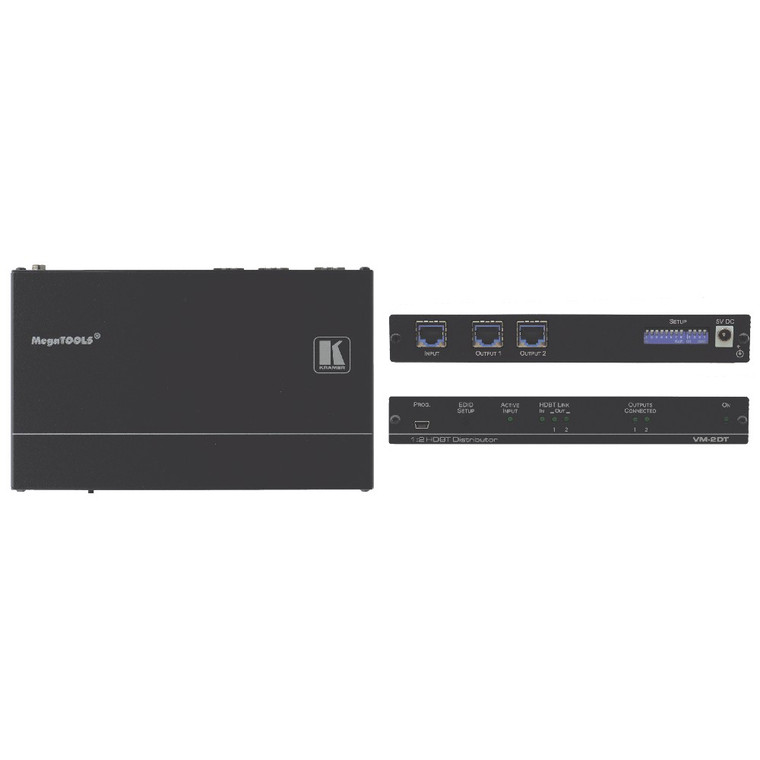

Kramer VM-2DT 1:2 4K60 4:2:0 Long–Reach HDBaseT DA

VM−2DT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one long−reach HDBaseT input, equalizes and reclocks the signal and distributes it to two identical HDBaseT outputs. VM−2DT distributes native HDBaseT signals with up to 4K video resolution, along with their re−extension over HDBaseT.

•  High Performance Distribution — Distributes one native, long–reach HDBaseT signal to two outputs with up to 4K video resolution, along with their re–extension over HDBaseT.
•  Dual–side Extension — Extends a 4K@60Hz (4:2:0) 24bpp (maximum) video signal to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions, when deployed mid–way between an AV source and multiple remote acceptors using CAT copper cable.
•  Standard Compatibility — Connects to any HDBaseT compliant extension product on the market.
•  HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
•  I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
•  LED Indicators — Status indicators for HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
•  Easy Installation — Twisted–pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.

Key Features

• 1:2 line extender distributor
• Up to 2 x 70m (230ft) at 1080p
• Up to 2 x 40m (130ft) at 4K (4:2:0)
• Up to 4K (4:2:0) 24bpp video resolution
• HDCP 1.4, HDBaseT 1.0 compliance

Technical Specifications

• Input: 1 HDBT on an RJ–45 female connector
• Outputs: 2 HDBT on RJ–45 female connectors
• Ports: 1 RS–232 on Mini–USB female connector for firmware upgrade
• Range Extension (Input or Output Each Side):

  • Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
  • HDBaseT 1.0 signal compliance
  • Note: When using Kramer HDBaseT cables
• Video:

  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDCP 1.4 signal compliance
  • Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
• Controls: EDID setup button
• Indication LEDs: HDBT input and outputs 1 to 2 links, CONNECTED outputs 1 to 2, ACTIVE input and power ON LEDs
• Power Source: 5V DC, 4A
• Power Consumption: 5V DC, 2.5A
• Enclosure: MegaTool size, Aluminum type
• Cooling: Fan ventilation
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Product Dimensions: 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
• Product Weight: 0.5kg (1.2lbs) approx.
• Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
• Shipping Weight: 1.3kg (2.8lbs) approx.

What's Included

• Power supply
