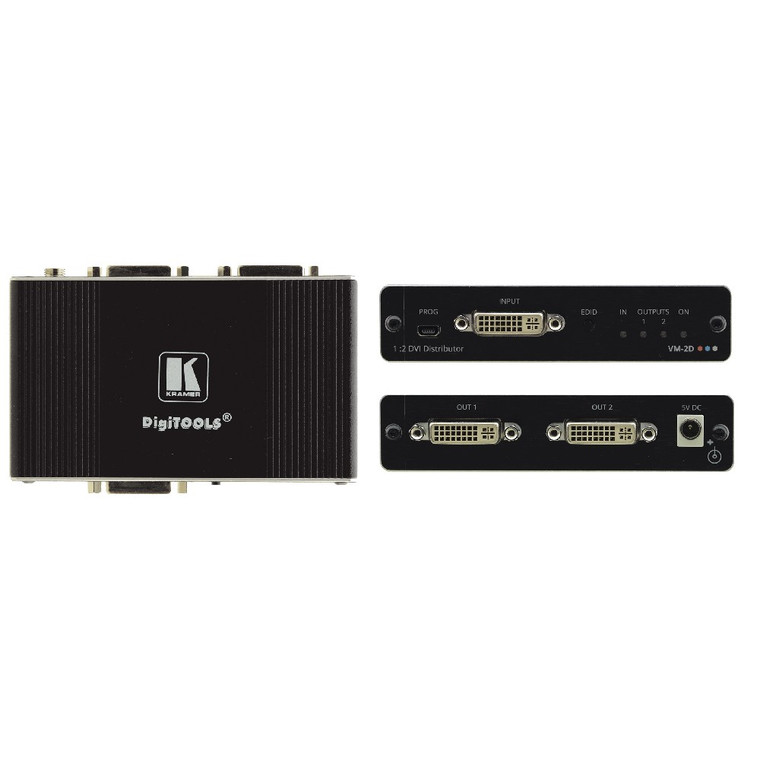

VM−2D is a 1:2 distribution amplifier for up to 4K@60Hz (4:2:0) HDMI signals, complying with HDCP 1.4 content protection standard, via single−link DVI−I connections. The unit takes one DVI input, equalizes and reclocks the signal, and distributes it to two identical outputs.
- High Performance Distributor — Professional 1:2 DVI distributor for up to 4K@60Hz (4:2:0) video resolution signals. Via single–link DVI–I connections, one HDMI HDCP 1.4 input signal is amplified and distributed to two identical output signals, with signals rebuilt using Kramer Equalization & re–Klocking™ Technology to gain longer distances.
- Secured Operation — Highly–secured operation is ensured by lockable wiring connectivity with protection against unintentional cables connection.
- HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the displays.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for DVI source and display systems.
- User–Friendly Operation — Comprehensive signal distribution features and signal mode–forcing options such as RGB forcing, with convenient EDID selection front panel button.
- Cost–Effective Field Maintenance — Mini–USB connection for simple field firmware upgrade. Status indicators for fast and effective troubleshooting.
- Easy Installation — Compact TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the optional recommended rack adapter.
Key Features
- 1:2 DVI distributor
- Lockable wiring connections
- Up to 4K@60Hz (4:2:0) video resolution
- Up to 10.2Gbps bandwidth
- DVI 1.0, HDCP 1.4 compliance
Technical Specifications
- Inputs: 1 DVI: On a DVI–I female connector
- Outputs: 2 DVI: On DVI–I female connectors
- Video:
- Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
- Max. Resolution: 4K@60Hz (4:2:0) 24bpp
- Standards Compliance: DVI 1.0 and HDCP 1.4
- HDMI Support: Deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
- User Interface:
- Controls: EDID setup button, RS–232 port on mini–USB female connector for firmware upgrade
- Indication LEDS: OUTPUTS 1 to 2, ACTIVE input and power ON LEDs
- Power:
- Source: 5V DC, 4A
- Consumption: 5V DC, 800mA
- Enclosure:
- Size: Tools
- Type: Aluminum
- Cooling: Convection ventilation
- Environmental Conditions:
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
- Product Weight: 0.3kg (0.6lbs) approx.
- Shipping Dimensions: 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H
- Shipping Weight: 0.7kg (1.5lbs) approx.
What's Included
- Power supply
- Bracket set
