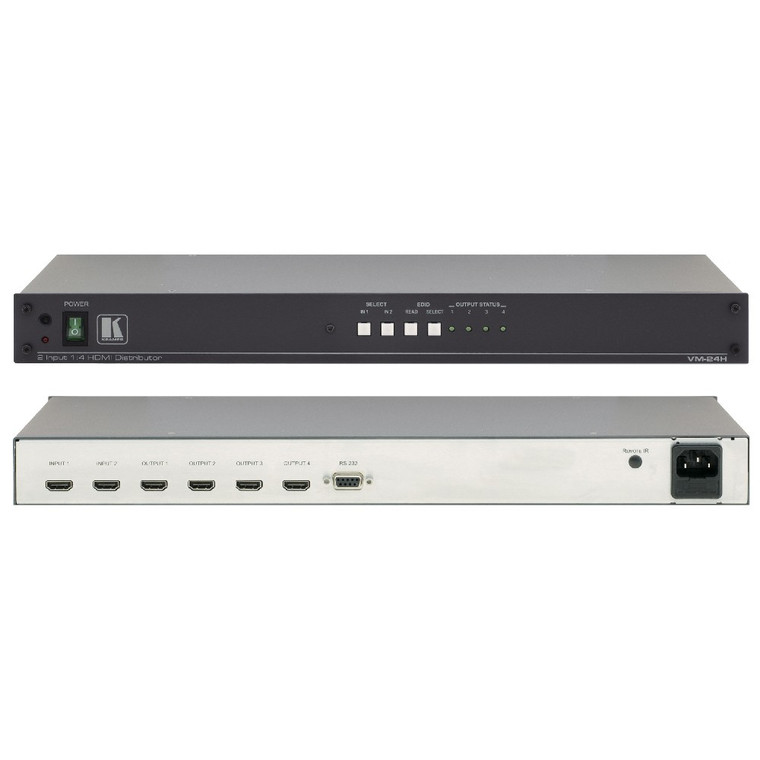

Kramer VM-24H 2x1:4 HDMI Switchable DA

The VM−24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs.

•  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
•  HDTV Compatible.
•  HDCP Compliant.
•  HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
•  3D Pass–Through.
•  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
•  Active Output LED Indicators.
•  Control — Front panel, RS–232, IR switching.
•  Worldwide Power Supply — 100–240V AC.
•  Standard 19” Rack Mount Size — 1U. Rack “ears” included.

Key Features

• Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
• Switcher & DA
• Enhanced EDID
• Control — RS–232 & IR

Technical Specifications

• Inputs: 2 HDMI connectors
• Outputs: 4 HDMI connectors
• Bandwidth: 6.75Gbps (2.25Gbps per graphic channel)
• Compliance with HDMI Standard: Supports HDMI and HDCP
• Controls: EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS–232, IR
• Indicator LEDs: Output status LEDs
• Power Consumption: 100–240V AC, 50/60Hz, 16VA
• Options: External remote IR receiver cable
• Product Dimensions: 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
• Product Weight: 1.6kg (3.5lbs) approx.
• Shipping Dimensions: 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
• Shipping Weight: 2.5kg (5.5lbs) approx.

What's Included

• Power cord
• Null–modem adapter
• Windows®–based control software
