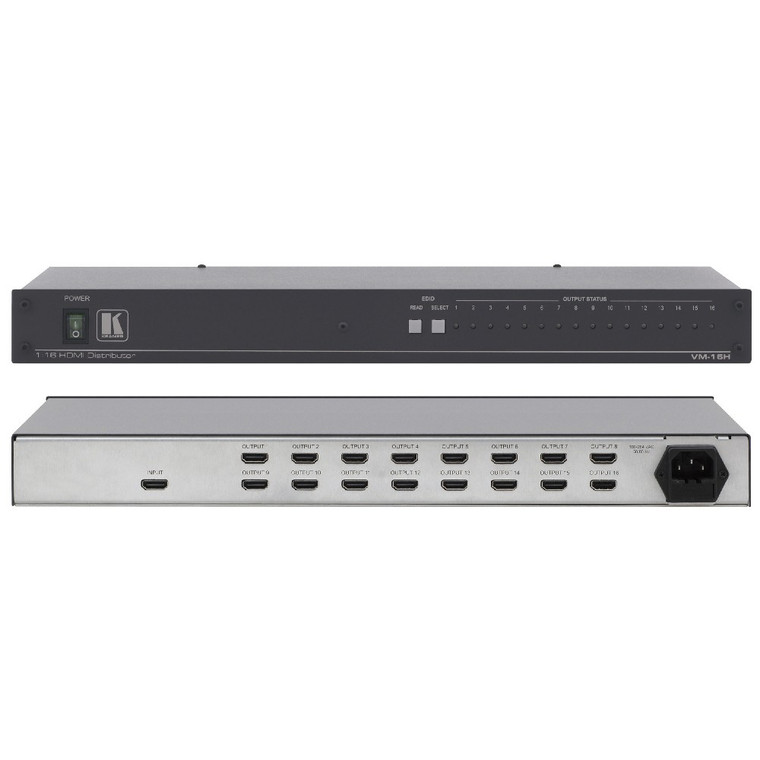

Kramer VM-16H 1:16 HDMI Distribution Amplifier

The VM−16H is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to 16 identical outputs.

*  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
*  HDTV Compatible.
*  HDCP Compliant.
*  HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
*  3D Pass–Through.
*  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
*  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
*  Active Output LED Indicators.
*  Worldwide Power Supply — 100–240V AC.
*  Standard 19” Rack Mount Size — 1U. Rack “ears” included.

Key Features

* Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
* HDCP Compliant
* Enhanced EDID

Technical Specifications

* Input: HDMI Connector
* Output: 8/16 HDMI connectors
* Bandwidth: 6.75Gbps (2.25Gbps per graphic channel)
* Compliance with HDMI Standard: Supports HDMI and HDCP
* Controls: SELECT and READ buttons for selecting and storing EDID information
* Indicator LEDs: Output Status 1 to 8/16
* Operating Temperature: 0° to +40°C (32° to 104°F)
* Storage Temperature: –40° to +70°C (–40° to 158°F)
* Humidity: 10% to 90%, RHL non–condensing
* Power Consumption: 100–240V AC, 50/60Hz 48VA
* Product Dimensions: 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
* Product Weight: 1.8kg (4.0lbs) approx.
* Shipping Dimensions: 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
* Shipping Weight: 3.2kg (7.1lbs) approx.

What's Included

* Power cord
