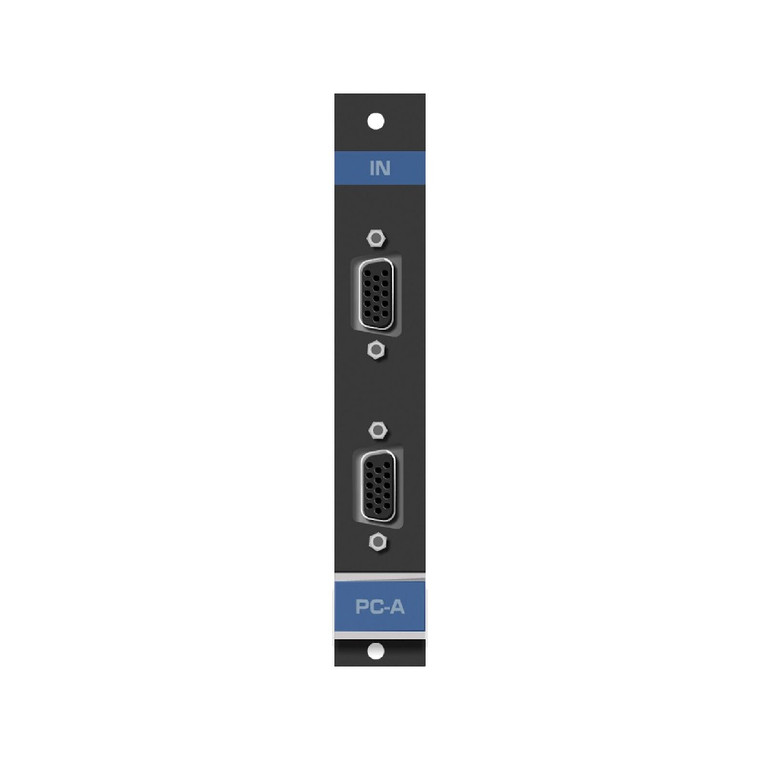

Kramer VGAA-IN2-F16 VGA Input Card with Audio Breaking for VS-1616D

VGAA−IN2−F16/F34 is a two−channel VGA with analog audio input card for the VS−1616 or VS−34FD Series Modular Multi−Format Digital Matrix Switchers. The VGAA−IN2−F16/F34 inputs two VGA with analog audio signals into the chassis. Audio is accessed by connecting the supplied Kramer VGA with audio cables to each VGA port.

Key Features

• Max. Bandwidth - 450MHz.
• HDTV Compatible.
• Analog Audio Over Breakaway Connector.

Technical Specifications

• Specifications:

  • Maximum Operating Temperature: +40°C
  • Special Features: HDTV Compatible, Analog Audio Over Breakaway Connector
  • Power Rating: 9.5W
  • For Use With: VS-1616 or VS-34FD Series Modular MultiFormat Digital Matrix Switcher
  • Applications: Professional Display Systems, Multimedia and Presentation, Rental and Staging
  • Humidity: 10 to 90%
  • Minimum Operating Temperature: 0°C
• Performance:

  • Bandwidth: 450MHz
  • Maximum Size Range: 10m
• Inputs and Ports:

  • Port Type: 2 Unbalanced Analog Audio on 3.5mm Mini Jack
• Dimensions:

  • Length: 13cm
  • Width: 25.2cm
  • Height: 2cm
  • Weight: 0.3kg
• Other:

  • Standards Met: CE, Complies with Appropriate Requirements of RoHs and WEEE

What's Included

• 2 C-GF/GMAF-30 Cables
