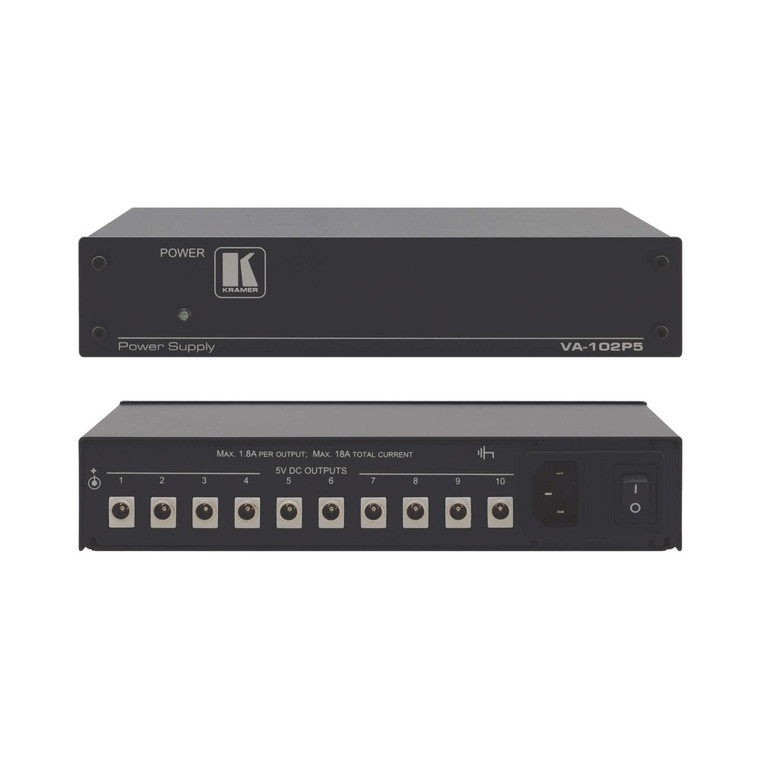

The VA−102P5 is a 10−output power supply that powers 5V DC powered devices. The VA−102P5 can supply a maximum of 1.8A of current to each of ten devices for a total of 18A. The power supply is especially useful in high−population installations for saving space and eliminating a large number of 5V DC power adapters. The MD model is suitable for medical applications.
- Outputs — 10 5V DC outputs that supply 1.8A max. current for each output for a total of 18A.
- Indicator — Power LED.
- Space Saving — Replaces up to 10 individual 5V DC power supplies for Kramer TOOLS™, Kramer PicoTOOLS™, and Kramer 5V DC Desktop models.
Key Features
- Max Output 1.8A each output (18A total)
Technical Specifications
- Outputs: 10 5V DC @1.8A max. current per output
- Indicator: Power ON LED
- Power Consumption: 100–240V AC, 1.8A
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Product Dimensions: 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
- Product Weight: 1.1kg (2.4lbs) approx.
- Shipping Dimensions: 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
- Shipping Weight: 1.6kg (3.5lbs) approx.
What's Included
- 10 DC to DC cables, 95cm (3.1ft) per cable
- AC power cord
- Product Type:
- Power Supplies
