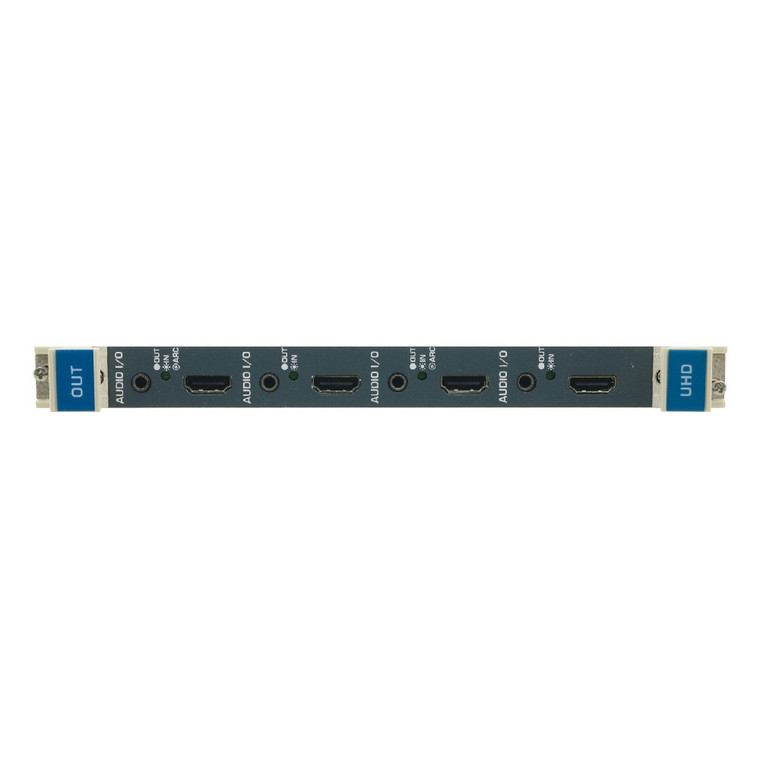

Kramer UHDA-OUT4-F32 4–Channel 4K60 4:2:0 HDMI Output Card with Selectable Embedded, De–embedded or ARC Analog Audio

UHDA−OUT4−F32 is a four−channel 4K@60Hz (4:2:0) HDMI output card with configurable analog audio features for the VS−3232DN−EM Modular Multi−Format Digital Matrix Switcher. UHDA−OUT4−F32 outputs four 4K HDMI signals with selectable embedded, de−embedded, or ARC unbalanced stereo analog audio.

*  Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
*  Max. Resolution — 4K@60Hz (4:2:0).
*  HDMI Support — 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
*  Selectable Analog Audio Mode — On the top and third jacks, select embedded, de–embedded or ARC. On the second and bottom jacks, select embedded or de–embedded.
*  HDTV Compatible.
*  HDCP Compliant.
*  3D Pass–Through.
*  EDID Capture — Copies and stores the EDID from a display device.
*  Kramer Equalization and re–Klocking Technology.

Key Features

* Resolution — Up to 4K@60Hz (4:2:0)
* Selectable Embedded, De–embedded or ARC Analog Audio

Technical Specifications

* Outputs: 4 HDMI, 4 Analog audio on 3.5mm mini jacks
* Bandwidth Per Channel: 2.97Gbps per graphics channel
* Total Bandwidth: 8.91Gbps data rate
* Maximum Range: 10m (32ft) — 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) — 1080p 12 bit (deep color)
* 3D Pass Through: Supported
* Standard Compliance: HDCP 1.4, HDTV compatible
* HDMI Support: 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, 7.1 multi–channel audio
* Power Consumption: 17W
* Operating Temperature: 0° to +40°C (32° to 104°F)
* Storage Temperature: –40° to +70°C (–40° to 158°F)
* Humidity: 10% to 90%, RHL non–condensing
* Safety Regulatory Compliance: CE
* Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
* Product Dimensions: 22.00cm x 18.80cm x 2.00cm (8.66" x 7.40" x 0.79" ) W, D, H
* Product Weight: 0.4kg (0.8lbs) approx.
* Shipping Dimensions: 25.00cm x 22.50cm x 5.50cm (9.84" x 8.86" x 2.17" ) W, D, H
* Shipping Weight: 0.6kg (1.3lbs) approx.
