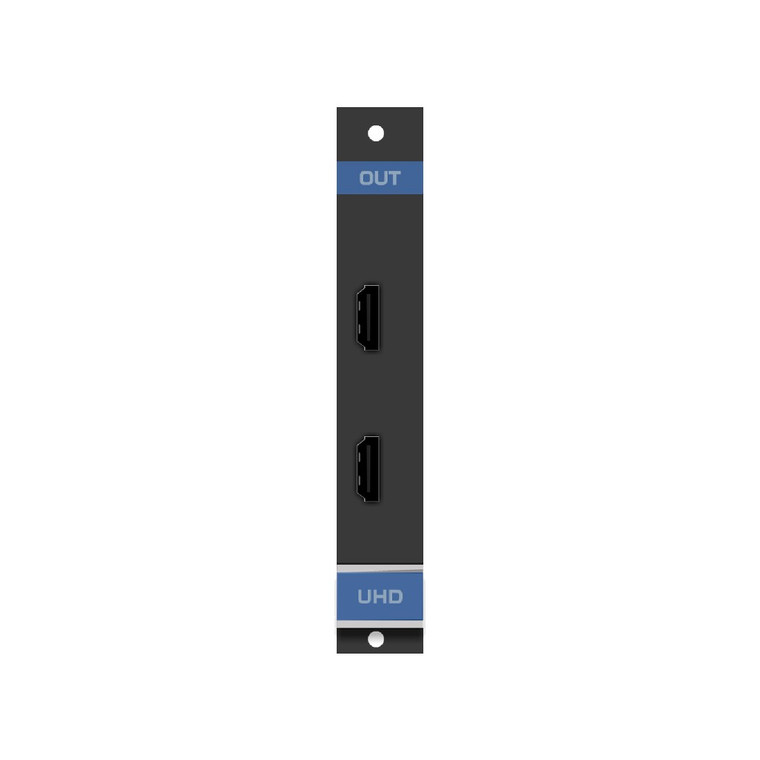

Kramer UHD-OUT2-F16 2–Channel 4K60 4:2:0 HDMI Output Card

UHD−OUT2−F16 is a two−channel 4K@60Hz (4:2:0) HDMI output card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The UHD−OUT2−F16 outputs two HDMI signals from the chassis.

*  Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).
*  Resolution Support — Up to 4K@60Hz (4:2:0).
*  HDMI Support — 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
*  HDTV Compatible.
*  HDCP Compliant.
*  EDID Capture — Copies and stores the EDID from a display device.
*  3D Pass–Through.
*  Kramer Equalization and re–Klocking Technology.

Key Features

* Resolution — Up to 4K60 (4:2:0)

Technical Specifications

* Ports: 2 HDMI
* Bandwidth Per Channel:
2.97Gbps per graphics channel
* Total Bandwidth: 8.91Gbps data rate
* Maximum Range: 10m (32ft) — 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) — 1080p 12 bit (deep color)
* 3D Pass Through: Supported
* HDMI Support: 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, 7.1 multi–channel audio
* Power Consumption: 4W
* Operating Temperature: –40° to +70°C (–40° to 158°F)
* Humidity: 10% to 90%, RHL non–condensing
* Standard Compliance: HDCP 1.4, HDTV compatible
* Safety Regulatory Compliance: CE
* Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
* Product Dimensions: 19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H
* Product Weight: 0.1kg (0.2lbs) approx.
* Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
* Shipping Weight: 0.3kg (0.6lbs) approx.
