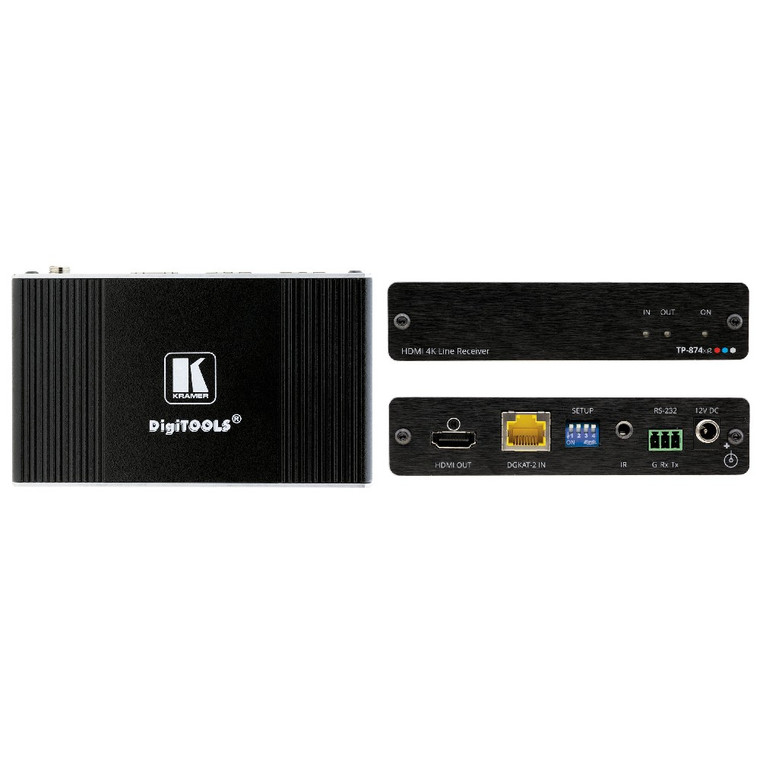

Kramer TP-874XR 4K HDR HDMI Compact Bidirectional-PoC Receiver with RS-232 & IR Over Long-Reach DGKat 2.0

TP−874xr is a high−performance, long−reach DGKat™ 2.0 receiver for 4K@60Hz (4:4:4) HDR HDMI HDCP 2.2 signals, RS−232 and IR signals and 2−way powering over twisted pair. It converts the transmitted DGKat™ 2.0 signal into an HDMI, RS−232 and IR signals. TP−874xr extends the signal to up to 50m (160ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.

Key Features

• High Performance Extender — Professional DGKat™ 2.0 receiver for providing long–reach signals and 2–way power over twisted pair copper infrastructures. TP–874xr employs low–level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near–zero latency. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal.
• HDMI Signal Extension — HDR, HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
• EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
• Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• Cost–effective Maintenance — Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local and remote maintenance and troubleshooting.
• Easy Installation — Single twisted–pair cable for signal and power wiring. Compact DigiTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended Kramer rack adapter.

Technical Specifications

• Specifications:

  • Maximum Operating Temperature: +40°C
  • Number of Channels: 32
  • Special Features: Compact, Low-Heat DGKat™ 2.0 Receiver, Control Extension, Two-Way Powering
  • Applications: Long Distance AV and Control Signal Extension for Large Room Connectivity, Meeting Rooms/Boardrooms/Hotels and Corporate Facilities
  • Humidity: 10 to 90%
  • Minimum Operating Temperature: 0°C
• Performance:

  • HDMI Compliance Type: 2.0
  • HDCP Compliance Type: 2.2
  • Video Bandwidth: 18Gbps
  • Maximum Resolution: 3840x2160@60Hz (4:4:4) 24bpp (High Compression Level), 4096x2160@60Hz (4:4:4) 24bpp (Standard Compression Level)
• Inputs and Ports:

  • Input Port Type: RJ45
  • Output Port Type: HDMI
  • I/O Interface Type: Indicator, Control
• Power:

  • Current Rating: 2A
• Dimensions:

  • Width: 12.cm
  • Depth: 7.1cm
  • Height: 2.4cm
  • Weight: 0.2kg
• Other:

  • Voltage Rating: 12V DC
  • Standards Met: CE, UL Listed, RoHS, WEEE

What's Included

• Power Adapter with Cord
• Bracket Set
