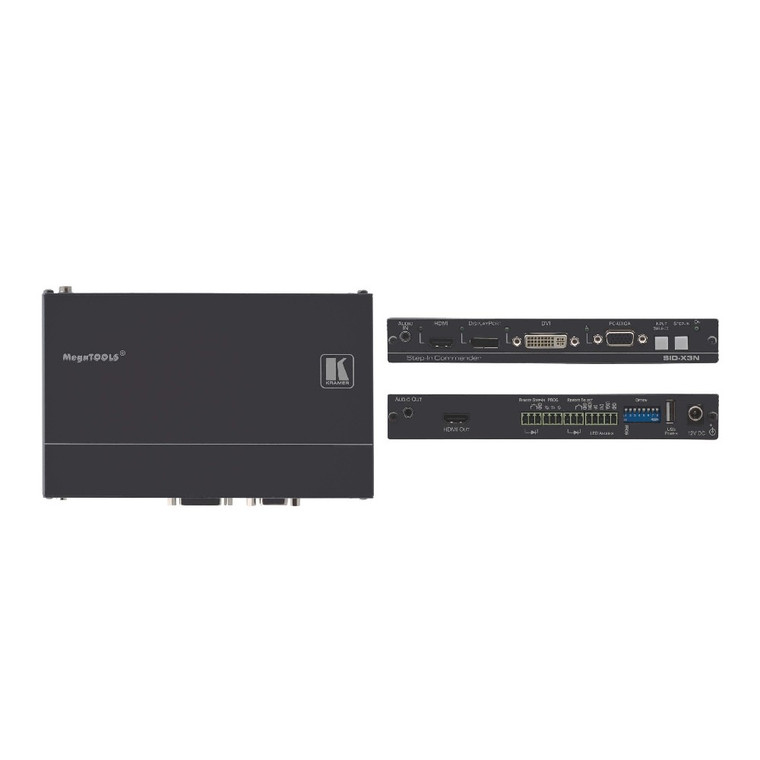

Kramer SID-X3N 4-Input Multi-Format Video Over HDMI Transmitter & Step-In Commander

The SID−X3N is an HDMI transmitter, step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source when connected to the VS−62H.

Key Features

• Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliant. — Works with sources that support HDCP repeater mode.
• HDMI Support — Deep Color, x.v.Color™ and 3D.
• EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Data Equalization and Reclocking.
• Input Signal Detection — Based on video clock presence.
• Automatic Input Selection — Based on manual selection or last connected input.
• Automatic Analog Audio Detection and Embedding.
• Local Balanced Audio De–Embedding.
• Support for Digital Audio Formats.
• Lockable EDID.
• Local Step–In Switching — Button & contact closure.
• Supports Programmable Step–In Functionality — Over HEC enabled HDMI cables, when used with compatible switchers such as the VS–62H.
• Power Supply — Requires independent power supply.

Technical Specifications

• Specifications:

  • Maximum Operating Temperature: +40°C
  • Colour: Black
  • Control Port Type: Front Panel Button, Remote Step-In Switch, Remote Input Selection Switch
  • Special Features: HDTV Compatible, HDCP Compliant
  • Applications: Boardrooms, Presentation Rooms
  • Humidity: 10 to 90%
  • Minimum Operating Temperature: 0°C
• Performance:

  • Video Bandwidth: 6.75Gbps (2.25Gbps per Graphic Channel)
• Inputs and Ports:

  • Input Port Type: 1xHDMI on HDMI Connector, 1xDP on Display Port Connector, 1xDVI-D on DVI-I Connector, 1xVGA on 15-Pin HD (F) Connector, 1 Unbalanced Stereo Audio on 3.5mm Mini Jack
  • Output Port Type: 1xHDMI on an HDMI Connector, 1xUnbalanced Stereo Audioin a 3.5mm Mini Jack
• Power:

  • Current Rating: 1.1A
• Dimensions

  • Length: 11.5cm
  • Width: 18.75cm
  • Height: 2.5cm
  • Weight: 0.5kg
• Other:

  • Voltage Rating: 12V DC
  • Standards Met: CE, UL Listed

What's Included

• Power adapter
