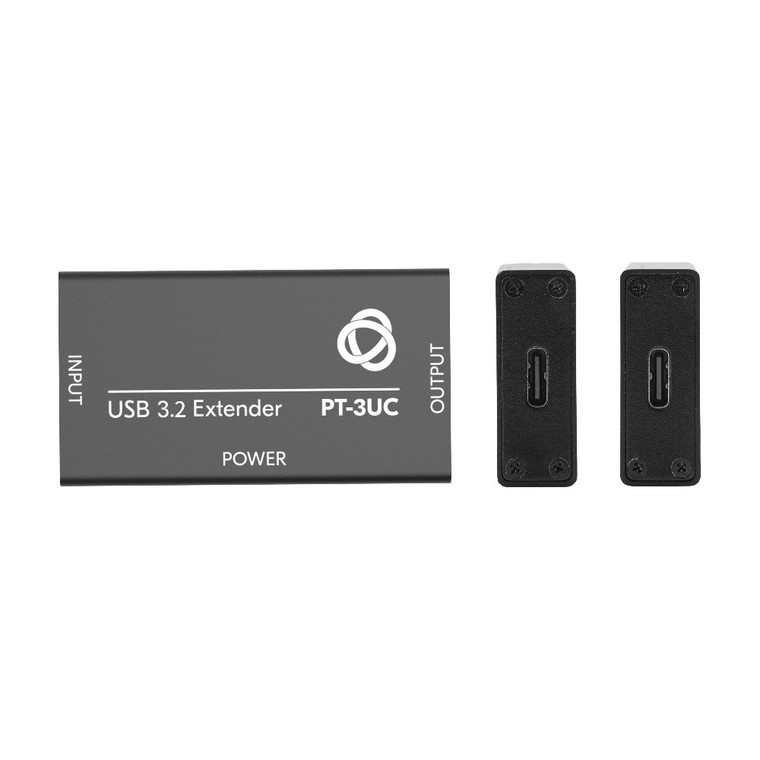

PT−3UC is an innovative active USB 3.2 extender that extends the USB cable distance between the host and the device by reclocking and equalizing the USB signal. Placing PT−3U in the transmission path, removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables.
- True Plug & Play — No additional driver program is needed.
- USB 3.1 Super Speed (10Gbps) Standard — Compliant with USB 3.2.
- Video ALT mode
- Backwards Compatible — USB 3.0, 2.0, 1.1
- External power supply via a micro–USB connector
- Buffers incoming & outgoing signal.
- Certifications — CE, FCC, REACH, ROHS.
Key Features
- Plug & Play
- USB 3.2 super speed + (10Gbps) standard
- USB 2.0, 1.1 backwards compatible
Technical Specifications
- Inputs: USB 3.2 Gen 2: On a USB type–C female connector
- Outputs: USB 3.2 Gen 2: On a USB type–C female connector
- General:
- Max. Data Rate: 10Gbps
- Max.: Video resolution 4K@60
- Max output power: 2.5A (12.5W)
- Max. Range: 10Gbps — 4m, 2m to PT–3UC, 2m to Device
- Backwards Compatibility: USB 3.0, 2.0, 1.1
- Power:
- Self Consumption: ≤1 W
- External power supply: Via a micro–USB connector
- Environmental Conditions:
- Operating Temperature: 0 ℃ to 45℃
- Operating Humidity: 10% to 85 % RH
- Storage Temperature: –10℃ to +70℃
- Storage Humidity: 5% to 90 % RH
- Product Type:
- Extenders
