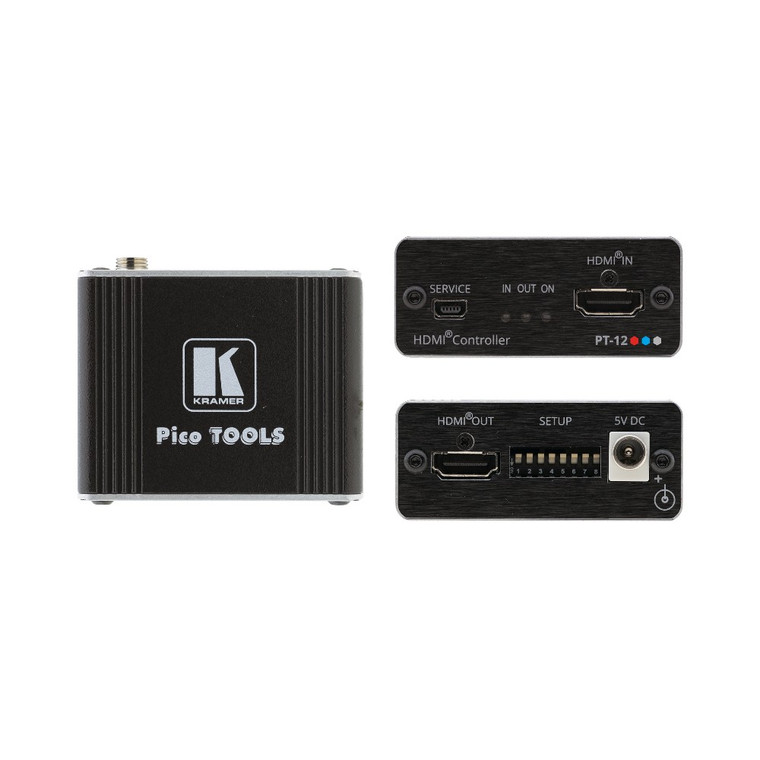

PT−12 is a CEC−enabled TV/display ON/OFF controller and extended EDID processor for HDMI signals up to 4K@60Hz (4:2:0) resolution. When PT−12 detects an HDMI cable plug, it automatically turns on the connected display, and automatically shuts down the display when signal loss is detected. PT−12 is an EDID processing tool for controlling the EDID functions.
- Plug–and–Play Display Operation — Simplifies meeting presentation operation by automatically turning ON/OFF a CEC–enabled display when the presentation source is plugged in / unplugged with user–defined shut–down delay.
- High–Performance HDMI Controller — Supports pass–through of signals up to 4K@60Hz (4:2:0) resolution with user control on signal capabilities and functions.
- HDCP Authorization — Controlled device appearance as HDCP authorized to allow unsecured content display by all market–available computer sources.
- Video Signal Control — Controlled color depth attributes and color space forcing capabilities of passing–through video signal, along with EDID locking configuration to ensure proper video display.
- Audio Signal Control — Controlled audio–channels limitation of passing–through audio signal.
- Display Control — Display auto shut–down upon no signal detection with user–defined delay, as controlled by end–user settings.
- Simple Operation — DIP–switches available for simple controller functions by end–user.
- Cost–Effective Maintenance — Status LED indicators for HDMI ports and power facilitate easy local maintenance and troubleshooting. Local device management and firmware upgrade via mini–USB port and DIP–switches, ensure lasting, field–proven deployment.
- Easy Installation — Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended Kramer rack adapter.
Applications
- Plug–and–play auto TV ON/OFF controller
- Adapting new devices compatibility with older AV infrastructure
- Supporting AV service troubleshooting
Key Features
- Auto CEC TV/display control
- EDID processing or pass–through
- Up to 4K@60Hz (4:2:0) resolution
Technical Specifications
- Inputs: 1 HDMI: On a female HDMI connector
- Outputs: 1 HDMI: On a female HDMI connector
- Ports: 1 USB: On a female mini USB connector
- Video:
- Max Resolution: 4K@60Hz (4:2:0)
- Max Data Rate: 10.2Gbps (3.4Gbps per data channel)
- Compliance: HDCP 1.4
- User Interface:
- Indicators: HDMI In, HDMI Out, Power LEDs
- Controls: 8 DIP–switches
- Power:
- Source: 5V DC
- Consumption: 315mA
- Environmental Conditions:
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Enclosure:
- Cooling: Convection
- Type: Aluminum
- Size: PicoTOOLS®
- Regulatory Compliance (Standards Compliance):
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Safety: CE
- Environmental: RoHs, WEEE
- Product Dimensions: 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
- Product Weight: 0.1kg (0.2lbs) approx.
- Shipping Dimensions: 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H
- Shipping Weight: 0.6kg (1.3lbs) approx.
What's Included
- Power supply
- Bracket kit
- Product Type:
- HDMI Controllers
