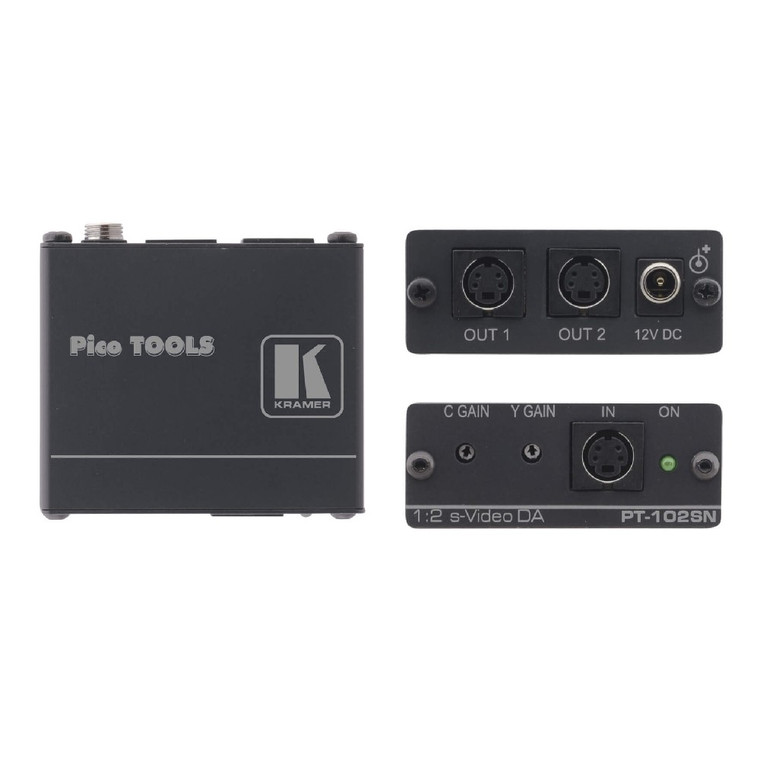

Kramer PT-102SN 1:2 s–Video Distribution Amplifier

The PT-102SN is a high-performance video distribution amplifier for s-Video (Y/C) video signals. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.

•  Bandwidth (Y) — 150MHz (–3dB).
•  Y & C Level (Gain) Controls.
•  Ultra Compact Pico TOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.

Key Features

• Bandwidth (Y) — 150MHz (–3dB)
• Y & C Level Controls

Technical Specifications

• Input: 1 s–Video on a 4–pin connector
• Outputs: 2 s–Video on 4–pin connectors
• Max. Output Level: 1.3Vpp
• Bandwidth (-3dB): 150MHz
• Diff. Gain: 0.05%
• Diff. Phase: 0.05Deg
• K-Factor: <0.05%
• S/N Ratio: 76dB @5MHz
• Controls:

  • Gain: luma (Y) — 1.9dB to +5.1dB
  • Chroma (C) 0dB to +6.8dB, @5MHz
• Coupling: AC
• Power Consumption: 12V DC, 25mA
• Options: RK–4PT 19” rack adapter
• Product Dimensions: 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
• Product Weight: 0.1kg (0.3lbs) approx.
• Shipping Dimensions: 17.40cm x 12.00cm x 8.60cm (6.85" x 4.72" x 3.39" ) W, D, H
• Shipping Weight: 0.4kg (0.8lbs) approx.

What's Included

• Power supply
• Mounting bracket
