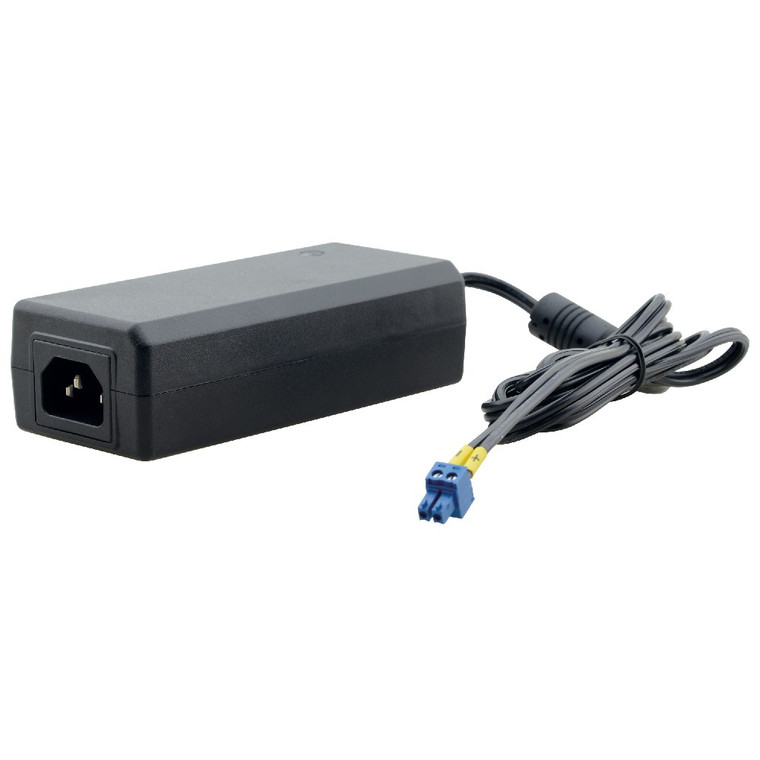

PS−4801 is a desktop power supply with a standard 2−pin terminal block connector that provides 48V DC / 1.36A to any compatible device.
- Reliable Operation — Maintains power connection with the lockable output cable connector.
- High–quality Performance — Designed for increased durability, reliable performance and high MTBF.
Key Features
- 48V DC desktop power supply
- Up to 1.36A current consumption
- Powers any 48V DC compatible device
- Standard 2–pin terminal block connector
Technical Specifications
- Power Input: 100–240V AC
- Maximum Power Output: 48V DC, 1.36A, 65W
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storing Temperature: –25° to +80°C (–13° to 176°F)
- Humidity: 10% to 90%, RH (non–condensing)
- DC Cable Length: 120cm (47")
- Product Dimensions: 13.13cm x 3.70cm x 5.54cm (5.17" x 1.46" x 2.18" ) W, D, H
- Product Weight: 0.2kg (0.5lbs) approx.
- Shipping Dimensions: 16.30cm x 12.50cm x 5.50cm (6.42" x 4.92" x 2.17" ) W, D, H
- Shipping Weight: 0.4kg (0.9lbs) approx.
- Product Type:
- Power Supplies
