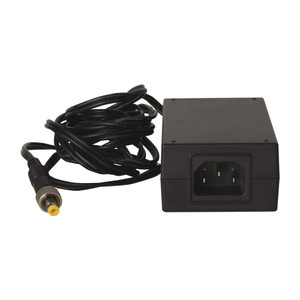

PS−1205 is a desktop power supply with standard size DC output plug that provides 12V DC, 5A to any compatible device.
- Reliable Operation — Maintains power connection with the lockable output cable connector.
- High–quality Performance — Designed for increased durability, reliable performance and high MTBF.
Key Features
- Up to 5A Current Consumption
- Powers any 12V DC Compatible Device
- Standard size, lockable input plug
Technical Specifications
- Inputs: 100−240V AC.: On an AC power socket
- Outputs: 12V DC, 5A max.: On a 5.5 mm outside diameter, 2.1 mm inside diameter DC power plug
- Max. Power: 60W
- Environmental Conditions
- Operating Temperature: 00° to +45°C (32° to 113°F)
- Storage Temperature: –20° to +80°C (–4° to 176°F)
- Humidity: 10% to 90%, RHL non–condensing
- DC Cable Length: 6ft (180cm)
- Product Dimensions: 14.50cm x 5.50cm x 3.50cm (5.71" x 2.17" x 1.38" ) W, D, H
- Product Weight: 0.3kg (0.6lbs) approx.
- Shipping Dimensions: 17.20cm x 13.00cm x 6.50cm (6.77" x 5.12" x 2.56" ) W, D, H
- Shipping Weight: 0.4kg (0.8lbs) approx.
- Product Type:
- Power Supplies
