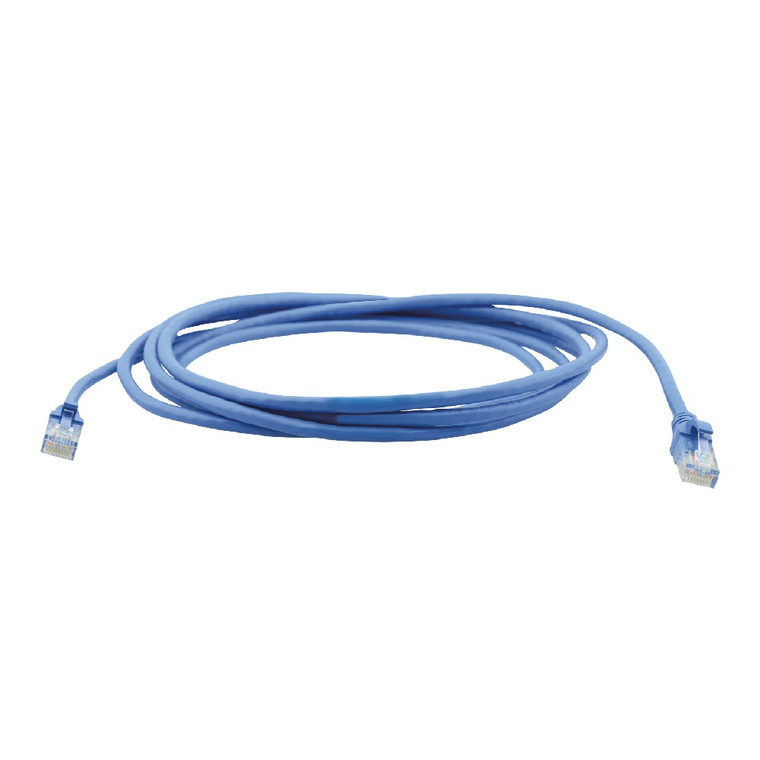

Kramer PC6A-LS508-0.15M CAT6A S/FTP 500MHz 4x2x26AWG Patch Cord Low Smoke & Halogen Free (0.15m)

Kramer's PC6A−LS508 CAT6A S/FTP patch cord is a high−quality LSHF 4x2x26AWG cable designed for LAN applications to ensure optimum performance.

•  Quality Construction — — 4 twisted pairs of 26AWG annealed bare copper, each individually screened and overall braided (S/FTP).
•  RJ–45 Connector — Slim snagless shielded RJ–45 connector, 50u gold plated contacts.
•  Rated — Low Smoke & Halogen free rated.
•  Varied Selection of Lengths — 0.15m to 30m (0.45 to 98ft).

Key Features

• Lengths — .45ft — 98ft (.15m — 30m)

Technical Specifications

• Construction:

  • Conductor Material: Annealed bare copper
  • Conductor Diameter: 7/0.16±0.01mm
  • Cable Size: 26AWG
  • Insulation Material: Skin/Foam/Skin PE
  • Insulation Diameter: 1.07±0.05mm
  • Color Code: Blue/white blue, brown/white brown, orange/white orange, green/white green
  • Sheath Material: LSHF
  • Sheath Color: Blue RAL 5015
  • Sheath Diameter: 6.0±0.5mm
• Screening Type: Aluminum poly laminate per pair
• Conductors Material: Tinned copper
• Electrical:

  • Impedance: 1–100MHz 100±15Ω
  • Impedance: 100–250MHz 100±22Ω
  • Impedance: 250–500MHz 100±25Ω
  • Max. Conductor DC Resistance: <128Ω/km
  • Propagation Velocity: 76%
• Physical:

  • Mechanical Characteristics: Maximum pulling tension 100N, minimum bending radius 48mm
  • Connector Type: Snagless shielded RJ–45 CAT6A
  • Wiring: EIA/TIA 568B
  • Contact Material: Bronze
  • Contact Plating: Gold 50µm
  • Over Molding: Blue, PVC
• Environmental Conditions:

  • Operating Tempature: –15–60°C
  • Storage Temperature: Storage/Transport/Installation 0–50°C
• Regulatory:

  • Compliant Standards - Electrical: UL Subject 444/CSA C22 No.214, CE, ISO/IEC 11801
  • Flammability: IEC 60332–1, IEC 60332–3, ICE 62321–1
  • Environmental: ANSI/TIA—568–C.2 Category 6A by Intertek Labs REACH, RoHS 2011/65/EU
