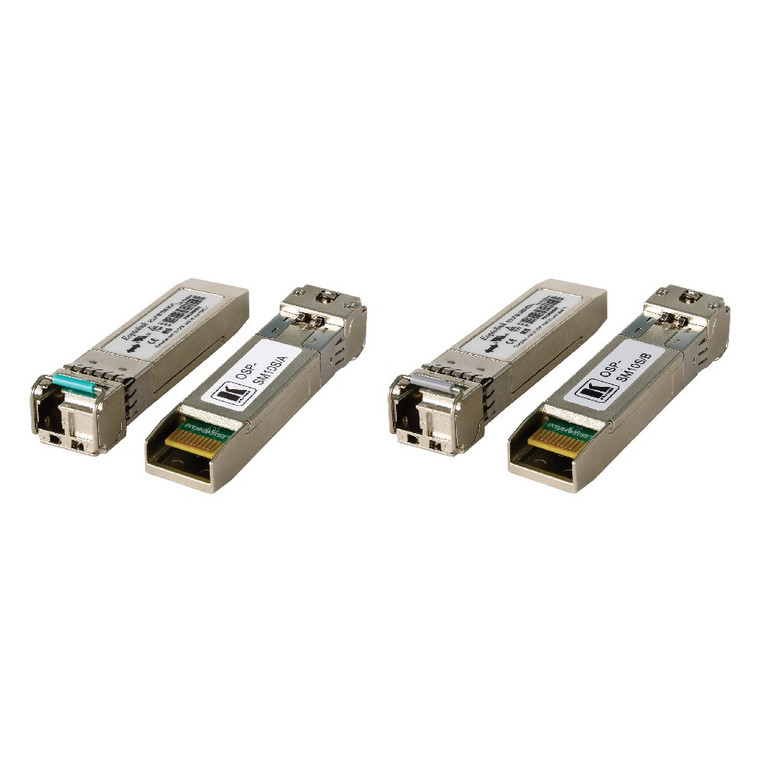

Kramer OSP-SM10S Optical SFP+ Transceiver Pair over 10G 1270/1330nm Simplex SM Fiber

Kramer
SKU:
50-000299

Pricing available upon request

Current Stock:

OSP−SM10S is a pair of fiber optic transceivers for 1270/1330nm single−mode signals. These standard pluggable SFP+ optical modules have one LC connector for reception and transmission of signals over one strand of single−mode optical fiber.

  •  Certified Transceiver — Kramer certified, hot–pluggable, simplex SFP+ optical modules, for high–quality transmission of 10.2Gbps signal over single–mode fiber cable, connecting 1 single–mode fiber strand via LC PC/UPC connector.

Key Features

  • Certified SFP+ optical modules
  • Single–strand LC–connected single–mode fiber
  • Ultra–reach — Up to 20km (12.4 miles)

Technical Specifications

  • General:
    • Optical Line: Single–mode G.652D compliant OFNR fiber
    • Nominal Peak Wavelength: Module A: 1270 transmitter /1330nm receiver
    • Module B: 1330 transmitter /1270nm receiver
    • Max. Data Rate: 10.2Gbps
    • Transmitter Type: DFB
    • Optical Typical Transmission Power: –5dBm
    • Optical Typical Maximum Receiver Sensitivity: –14dBm
    • Optical Typical Maximum Loss Budget: 9dB
  • Ports:
    • 1 Optical: On single–strand LC–connected single–mode fiber
    • Note: Do not use with LC(APC) cable connectors
  • Extension Line: Max. Reach: 20Km (12.4 miles) reach over OS1 SM fiber
  • Regulatory Compliance (Standards Compliance):
    • Quality: IEEE 802.3ae, SFF–8431, SFF–8472
      Laser Safety: Laser Class I
    • Safety: FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368–1 and IEC 60825–1 and — 2
  • Power Consumption: 1W
  • Environmental Conditions:
    • Operating Temperature: 0° to 70°C
    • Storage Temperature: –40° to 85°C
    • Humidity: 5% to 95% RH
  • Product Dimensions: 1.33cm x 5.70cm x 0.85cm (0.52" x 2.24" x 0.33" ) W, D, H
  • Product Weight: 0.1kg (0.1lbs) approx.
  • Shipping Dimensions: 12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H
  • Shipping Weight: 0.1kg (0.2lbs) approx.
Product Type:
Transceivers
