Kramer OSP-MM1 Optical MM 850nm 10G SFP+ Transceiver
KramerPricing available upon request

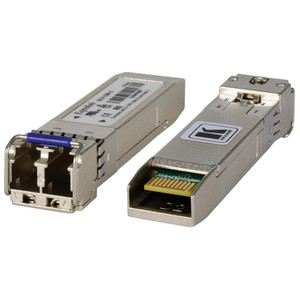

OSP−MM1 is a fiber optic transceiver for 850nm multimode signals. This standard pluggable SFP+ optical module has two LC connectors for reception and transmission of signals over two strands of multimode optical fiber.
- Certified Transceiver — Kramer certified, hot–pluggable SFP+ optical module, for high–quality transmission of 10.2Gbps signal over multimode fiber cables, connecting 2 simplex multimode fiber strands via LC AP/UPC connectors.
Key Features
- Certified SFP+ optical module
- 2–strand LC–connected multimode fiber
- Ultra–reach — Up to 3km (1.8 miles) at 4K@60Hz (4:2:0)
- Data rate — 10.2Gbps
Technical Specifications
- Optical Line: Multi–mode G.651.1 compliant OFNR fiber
- Ports:
- 2–strand simplex fiber optic LC(PC/UPC) connector
- Note: Do not use with LC(APC) cable connectors
- Max. Reach: 3km (1.8 miles) over OM3 MM fiber
- Nominal Peak Wavelength: 850nm
- Max. Data Rate: 10.2Gbps
- Transmitter Type: VCSEL
- Optical Typical Transmission Power: –2.5dBm
- Optical Typical Maximum Receiver Sensitivity: –11.1dBm
- Optical Typical Maximum Loss Budget: 8.6dB
- Standards Compliance: IEEE 802.3ae, SFF–8431
- Laser Safety Compliance: Laser Class I
- Regulatory Certifications: FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368–1 and IEC 60825–1 and — 2
- Power Consumption: 1W
- Operating Temperature: 0° to 70°C
- Storage Temperature: –40° to 85°C
- Humidity: 5% to 95% RH
- Product Dimensions: 1.33cm x 5.70cm x 0.85cm (0.52" x 2.24" x 0.33" ) W, D, H
- Shipping Dimensions: 12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H
- Shipping Weight: 0.1kg (0.1lbs) approx.
- Product Type:
- Transceivers
