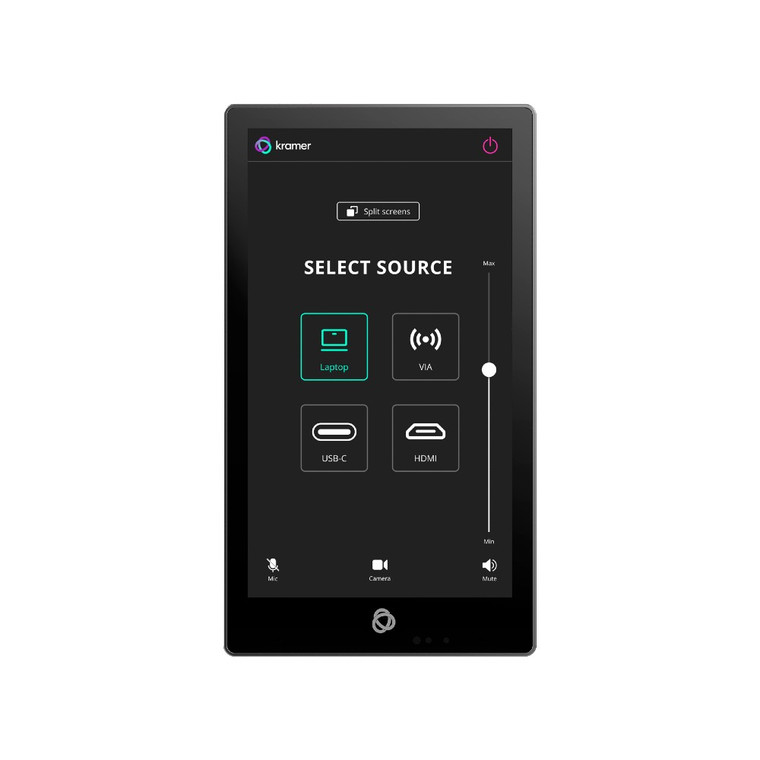

Kramer KT-205WM 5.5" Wall Mounted PoE Touch Panel

KT−205WM is a new powerful, 5.5 inch, IPS, multi−touch, touch panel with 720x1280 (9:16) resolution. Elegantly designed for wall−mounted decorative room integration. KT−205WM runs the latest Android 11, supports wired PoE (Power over Ethernet) and advanced Wi−Fi connectivity options. The touch panel has a built−in speaker and microphone and comes with a wall mount. The touch panel is easy to assemble, with elegant wiring and secured mounting providing reliable operation and flexible deployment. KT−205WM touch panel is ideal for 24/7 Kramer−supported commercial AV or control applications and features a user−friendly, fully customizable graphical user interface configured by Kramer software.

•  Elegant Design — Smooth integration with room design, with flexible panel cabling and locking design options.
•  Superior User Experience — IPS 720x1280 hi–resolution screen with ±80° horizontal and vertical wide viewing angles, ambient light sensor, proximity sensor, with advanced multi–touch points and 2–finger gesture capabilities.
•  Powerful Processing — i.MX8M Plus Quad Core A53, 2GB RAM, 32GB ROM processing performance, smoothly running complicated media and graphics–rich applications, such as H.265 video and audio streams encoding and decoding.
•  Flexible Services — Latest Android 11 operating system.
•  Easy Installation — Powering and connectivity via a single Ethernet cable.
•  Optional Connectivity — Simple wireless Bluetooth 5 as well as connection to USB peripheral devices.
•  Reliable Networking — Seamless switching between wired and wireless 802.11ac connectivity.
•  Versatile Powering Options — PoE or power adapter (sold separately).
•  Auto Sensing — Optimized performance and operation according to automatically detected LAN speed.
•  Firmware Update — Define automatic updates at a predefined time of day or update manually using the USB port.
•  Secured Operation — Highly secure operation of applications using password protection, hidden control buttons and more.
•  Secured Deployment — Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.

Key Features

• 5.5" elegant, high–quality touch panel
• Single Ethernet cable for connectivity & PoE powering
• Advanced Wi–Fi connectivity options
• Wall mounted
• Supported by: Kramer Control

Technical Specifications

• Ports:

  • 1 Ethernet: On an RJ–45 (10M/100M/1000M) connector with PoE 802.3at
  • 1 Micro USB: On a Micro USB (AB) OTG connector
• General:

  • CPU Performance: ARM Quad–core Cortex–A53 up to 1.8GHz (64 bit)
  • System Memory: 4GB LPDDR4
  • Internal Storage Memory: 32GB eMMC
  • Touch Panel Type: Multi–touch type
  • Wireless Communication: Wi–Fi 6, 802.11 a/b/g/n/ax/ax, Bluetooth BT 5.0
  • Display Screen: Multi–touch (PCAP)
  • Display Size: 5.5” 720x1280 portrait mode
  • Wall Mounting Ready: Dedicated bracket for easy mounting
  • Contrast Ratio: 350cd/m2 brightness, 1000:1 contrast ratio
  • Back-light: LED Side–light type
• Audio:

  • Speaker Unit: Built–in, 1x1W
  • Microphone: 2, Built–in
  • Audio Codecs: MPEG/OGG/AAC
• Video:

  • Video Format: H.264 / H.265, VC–1, MPEG–4, VP9/VP8
  • Image Codecs: JPEG/BMP/GIF/PNG
• Power:

  • PoE: Power over Ethernet 802.3af
  • Source: 12V/1A DC adapter (optional)
• User Interface:
  • Controls: Restart (on top, recessed), Restore factory settings (on–back, recessed), Home (in top)
  • Indicators: LED sidebars to indicate room status (requires 3rd party integration)
• Environmental Conditions:

  • Operating Temperature & Humidity: 0° to +40°C (32° to 104°F), 5% to 85%
  • Storage Temperature & Humidity: –20° to +60°C (–4° to 140°F), 5% to 90%
• Regulatory Compliance (Standards Compliance):

  • Safety: CE, FCC, UL, UKCA
  • Environmental: RoHs, WEEE
• Product Dimensions: 14.30cm x 8.00cm x 8.00cm (5.63" x 3.15" x 3.15" ) W, D, H
• Product Weight: 0.2kg (0.4lbs) approx.
• Shipping Dimensions: 23.50cm x 14.80cm x 7.80cm (9.25" x 5.83" x 3.07" ) W, D, H
• Shipping Weight: 0.5kg (1.1lbs) approx.

What's Included

• On–wall mounting bracket
• Installation screws
