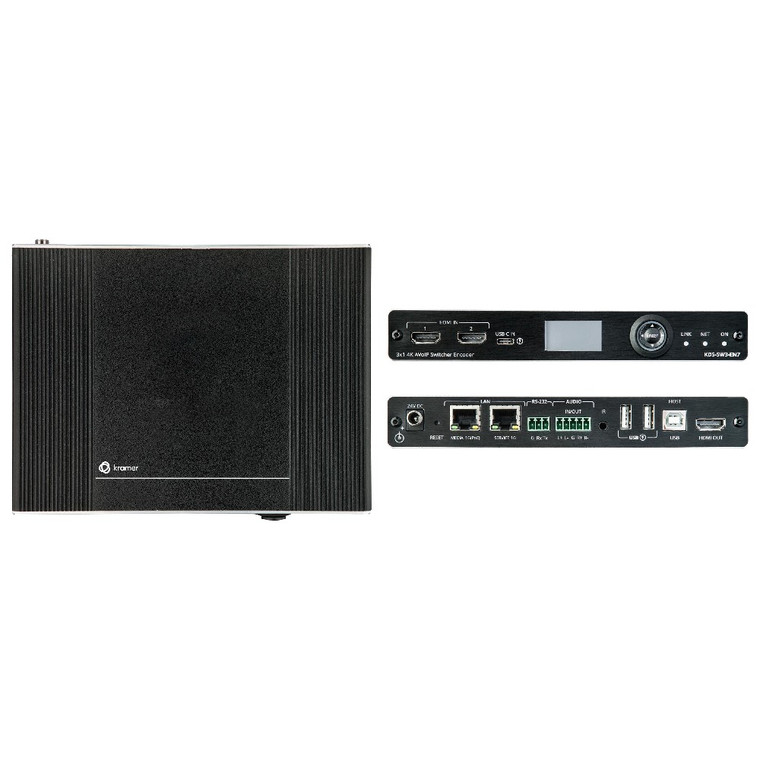

Kramer KDS-SW3-EN7 4K AVoIP Encoder Switcher with Dante over 1GbE

Kramer
SKU:
60-000890

Pricing available upon request

Current Stock:

KDS−SW3−EN7 is an auto switcher and advanced encoder for streaming a selected video signal at 4K via Ethernet over copper cable in unicast (one−to−one) or multicast (one−to−many) configurations. It can add digital audio Dante, USB, IR, RS−232, or CEC signals.

  • KDS−SW3−EN7 is an auto switcher and advanced encoder for streaming a selected video signal at 4K via Ethernet over copper cable in unicast (one−to−one) or multicast (one−to−many) configurations. It can add digital audio Dante, USB, IR, RS−232, or CEC signals.

    •  KDS–SW3–EN7 provides exceptional quality, advanced user–friendly operation, and flexible control.
    •  Instantaneous Switching Time — 1 second switching time between selectable video inputs.
    •  Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface. While KDS–DEC7 decodes the stream to 4K@30Hz (4:4:4) resolution.
    •  Streaming delay 33msec — for video 4K@30Hz 4:4:4 signal.
    •  Streaming Support — Provides unicast and multicast streaming.
    •  Flexible Analog Audio Embedding and De–embedding — Select balanced analog audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
    •  Flexible Digital Audio Embedding and De–embedding Dante — Select digital audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
    •  Easy To Use KM/KVM Support — Searchable, OSD menu for KM and fully configurable KVM roaming.
    •  Power consumption without USB–C Power Delivery is 13W — power consumption with USB–C Power Delivery is 77W (requiring the optional power supply).
    •  Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
    •  PoE Support — Powered with PoE connection from PoE LAN switch.
    •  Control Gateway — Through P3K or special TCP connection, users can control/communicate with IR, RS–232, or CEC to the connected devices.
    •  Separate Service LAN Port — can be used for physical separation between AV and command streams to separate LAN for security and reliability purposes.
    •  Selectable Inputs — 2 HDMI and 1 USB–C input.
    •  Analog/Digital audio inputs and outputs.
    •  Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, and KDS–USB2.

Key Features

  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Robust security
  • Simple planning and rollout

Technical Specifications

  • Inputs:
    • 2 HDMI: On female HDMI connectors
    • 1 USB: On a USB–C connector
  • Outputs: 1 HDMI On a female HDMI connector
  • Ports:
    • 2 Ethernet: On R–J45 female connectors
    • 1 Balanced Audio: On a 5–pin terminal block connector
    • 1 RS-232: On a 3–pin terminal block connector
    • 1 IR: On a 3.5mm TRS connector
    • 1 USB-B Host: On a USB–B connector
    • 2 USB-A Devices: On USB–A connectors
  • Network:
    • Multicast: UDP, IGMP snooping non–blocking, Layer 2
    • Unicast: UDP
    • Bit Rate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
  • Video Streaming:
    • Compression: Visually Lossless, proprietary codec
    • Max Input Resolution: 4K@60hz (4:2:0)
    • Max Output Resolution: 4K@30hz (4:4:4)
    • Max End-to-End Resolution: 4K@30hz (4:4:4)
    • Scaler: Yes
    • End-to-End Latency: 33msec
    • Switching Time: 1sec
  • Resolution:
    • 4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
    • 3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz,
    • 1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz,
    • 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
    • 1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz,
    • 1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz,
    • 1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz
  • Audio:
    • Supported Formats: LPCM, Dolby and DTS
    • LPCM: LPCM upto 7.1/24–bit/192kHz
    • Dolby: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0
    • Surround, Dolby Digital 2/0
    • DTS: DTS–HD Master Audio, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1
    • Dante Digital Audio: 2 IN or 2 OUT audio mono channels
  • Security: HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key
  • User Interface:
    • Indicators: LINK, NET and ON LEDs, front panel LCD Display
    • Rear Panel: Restart and factory reset button
    • Controls: Embedded web pages, P3K API commands via Ethernet, front panel navigation buttons
  • Power:
    • PoE (Power over Ethernet): 37V to 57V
    • Typical Power Consumption: 9.21W
    • AV + USB Power Consumption: 14.58W
    • Optional power supply: 24V DC, 5A
    • Full Load (including USB-C Charging) Power Consumption: 77.93W
  • Environmental Conditions:
    • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
    • Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
    • Humidity: 10% to 90%, non–condensing
  • Regulatory Compliance (Standards Compliance):
    • Safety: CE, FCC
    • Environmental: RoHs, WEEE
  • Enclosure:
    • Size: Mega Tool Deep
    • Type: Aluminium
    • Cooling: Convection Ventilation
  • Product Dimensions: 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H
  • Product Weight: 0.7kg (1.5lbs) approx.
  • Shipping Dimensions: 31.20cm x 18.00cm x 7.60cm (12.28" x 7.09" x 2.99" ) W, D, H
  • Shipping Weight: 0.9kg (2.1lbs) approx.
Product Type:
AV Streamers
