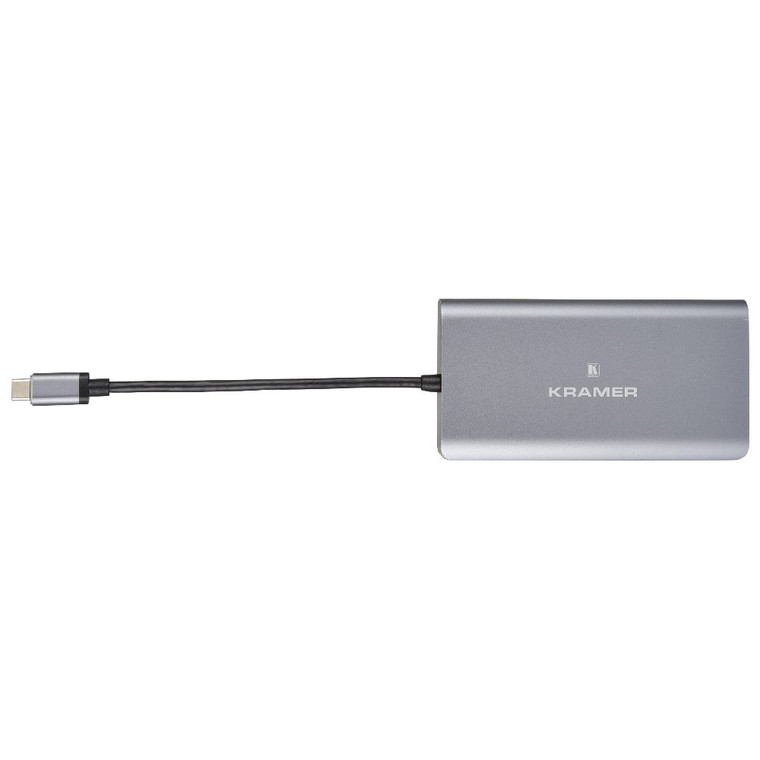

Kramer KDOCK-3 USB–C Hub Multiport Adapter

Kramer
SKU:
91-00015899

Pricing available upon request

Current Stock:

KDock−3 is a USB−C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB Type−C, mobile phones, and tablets. KDock−3 enables you to connect your USB−C device to HDMI™ and DisplayPort video outputs, 2 USB 3.2 Gen 1, an Ethernet port, SD card port and USB−C data and charging pass−through.
Note: Video output for smartphones is supported only for smartphones that support DisplayPort Alt mode through USB−C.

Key Features

  • 4K@30 HDMI output
  • 4K@30 DisplayPort output
  • USB 3.2 Gen 1 data and charging port
  • Ethernet port
  • USB–C data port and charging pass–through

Technical Specifications

  • Inputs: 1 USB On a USB Type–C male connector
  • Outputs:
    • 1 HDMI: On a female HDMI connector
    • 1 DisplayPort: On a female DisplayPort connector
  • Ports:
    • 2 USB 3.2 Gen 1/2.0: On female USB type–A connectors
    • 1 Ethernet: On an RJ–45 connector
    • 1 USB 3.2 Gen 1: On a female USB type–C connector for data and charging
    • SD: On an SD card port
  • Video:
    • Max Resolution: 3840x2160P@30Hz (with one display connected)
    • Max Resolution: 1920x1080P@60Hz (with two displays connected)
    • Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)
    • Multiple Video Output Support: Via MST (Multi–Stream Transport) technology
    • Content Protection (HDMI output): HDCP 1.4
  • Extended Ethernet:
    • Max Data Rate: 1000M (Gigabit)/100M/10M
    • Includes: Wake–on–LAN (WoL), single Mac address, PXE boot
  • General: USB 3.2 Gen 1 Data Transmission Speed (USB 3.2 Gen 1 & USB-C): Up to 5.0Gbps
  • Power:
    • Delivery: 100W
    • USB Charging: BC1.2 (5V 1.5A)
    • USB Limited Current when Connected to Power via female USB-C port: 1.9A
    • USB Limited Current when Not Connected to Power via female USB-C port: 1A
  • Environmental Conditions:
    • Operating Temperature: 0° to +70°C (32° to 158°F)
    • Storage Temperature: –10° to +55°C (14° to 131°F)
    • Humidity: 5% to 90%, RHL non–condensing
  • Enclosure: Aluminum with built–in 16cm/6.3" flexible USB–C cable
  • Regulatory Compliance (Standards Compliance):
    • Safety: CE
    • Environmental: RoHs, FCC
  • Product Dimensions: 11.65cm x 6.08cm x 1.60cm (4.59" x 2.39" x 0.63" ) W, D, H
  • Product Weight: 0.1kg (0.2lbs) approx.
  • Shipping Dimensions: 10.00cm x 3.30cm x 15.50cm (3.94" x 1.30" x 6.10" ) W, D, H
  • Shipping Weight: 0.2kg (0.4lbs) approx.
Product Type:
Cables & Connectors
