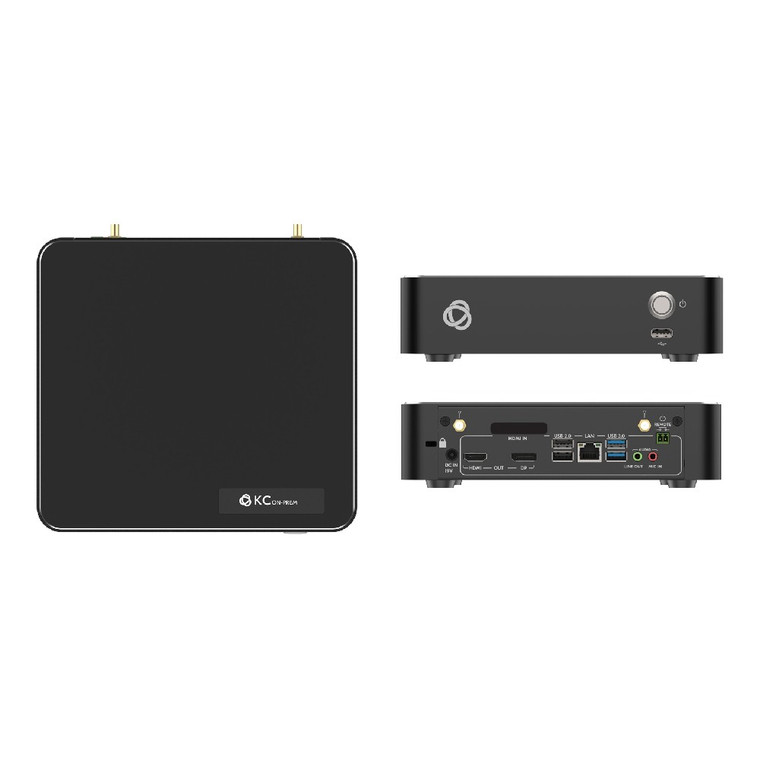

Kramer KC-ONPREM Hardware Platform for Control On Prem

KC−ON PREM brings the ease of programming of our cloud−based AV control platform to your local infrastructure, in the form of a self contained “appliance”. This solution offers the same code free environment for building intuitive user interfaces allowing end users to control any in−room AV devices. KC−ON PREM delivers enterprise−class AV control with the security and reliability of a fully offline, locally managed system. It combines powerful functionality with ease of use, enabling you to create sophisticated, tailored solutions that meet your specific needs while maintaining complete control over your data and systems.

•  Full Offline Operation
  — Operates entirely on your local network, ensuring maximum data privacy and security.
  — No internet connection is required.
  — Ideal for high–security environments or locations.
•  Effortless Configuration and Personalization
  — Intuitive drag & drop Kramer Control Builder for easy system design — no code required.
  — Start with predefined, space–specific templates and easily customize to your needs.
  — Design, configure, and modify control systems without complex programming.
•  Comprehensive Control Capabilities
  — Configure all in–room AV and automation controls from a single interface.
  — Extensive library of device drivers for seamless integration.
•  Fast Deployment
  — All updates and management done locally, ensuring full control over system changes.
  — All provisioning & Publishing is also done offline.
  — No automatic cloud updates, preserving the integrity of your offline environment.
•  Local Updates and Management
  — All updates and management done locally, ensuring full control over system changes.
  — All provisioning & Publishing is also done offline.
  — No automatic cloud updates, preserving the integrity of your offline environment.

Key Features

• For organizations with high security requirements or sensitive data
• For facilities in remote locations with limited internet access
• For businesses looking to maintain complete local control over their AV systems
• For installations requiring ultra–low latency control systems
• For environments where network isolation is paramount

Technical Specifications

• Ports:

  • 2 USB 3.1 Gen 1 (blue): On female USB type–A connectors
  • 3 USB 2.0 (black): On female USB type–A connectors
  • 1 LAN: On an RJ–45 connector
• Inputs:

  • 1 Microphone: On a 3.5mm jack
• Outputs:

  • 1 HDMI: On a female HDMI connector
  • 1 DisplayPort: On a female DisplayPort connector
  • 1 Unbalanced Stereo Audio Line Out: On a 3.5mm jack
• Video:

  • Max. Resolution HDMI Input: 4K@60
  • Max. Resolution DisplayPort Output : 4K@60
  • Max. Resolution HDMI Output: 4K@30 (RGB)
  • Video Streaming Playback (using Kramer VIA app Multimedia feature): 1080p@60fps
• Audio:

  • Integrated High Definition Audio : 5.1 channel
  • Processor: 3.60 GHz quad core (8th Generation)
• General:

  • Main Memory: 8GB (2 x 4GB DDR4 SDRAM modules)
  • Storage: 128GB, solid–state drive
  • LAN: Gigabit LAN
• Power:

  • Source: 19V
  • Consumption: 5A
• Environmental Conditions:

  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
• Product Dimensions: 21.00cm x 19.00cm x 5.00cm (8.27" x 7.48" x 1.97" ) W, D, H
• Product Weight: 1.4kg (3.1lbs) approx.
• Shipping Dimensions: 40.50cm x 29.70cm x 9.00cm (15.94" x 11.69" x 3.54" ) W, D, H
• Shipping Weight: 2.8kg (6.1lbs) approx.

What's Included

• Power adapter
