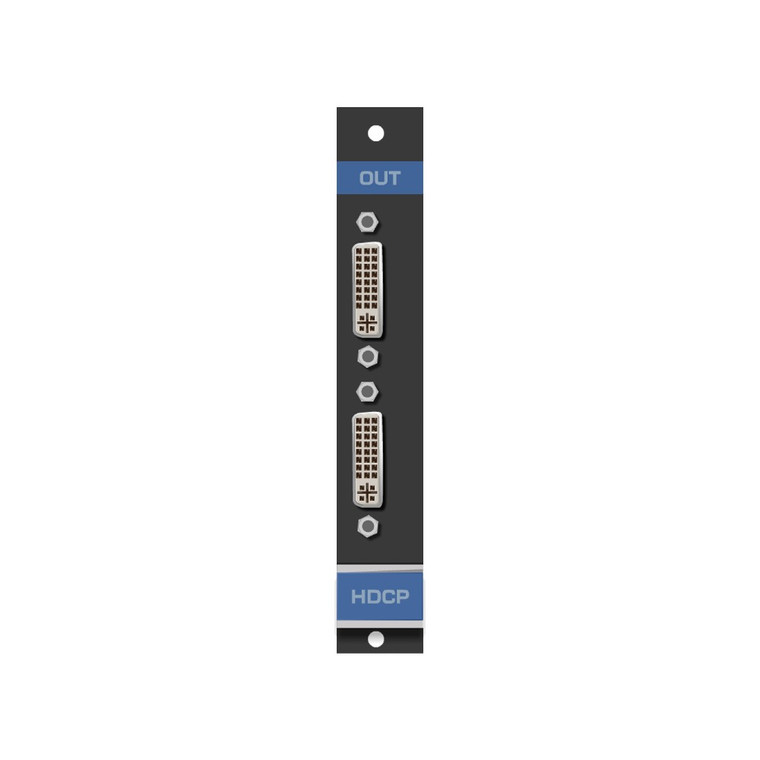

Kramer HDCP-OUT2-F16 2–Channel DVI (HDCP) Output Card

Kramer HDCP-OUT2-F16 2–Channel DVI (HDCP) Output Card

Kramer
SKU:
20-70002498

Pricing available upon request

Current Stock:
Description

HDCP−OUT2−F16 is a two−channel HDMI over DVI (HDCP) output card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The HDCP−OUT2−F16 outputs two HDMI/HDCP signals from the chassis.

*  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
*  HDCP Compliant.
*  HDMI Support.
*  3D Pass–Through.
*  DVI Connectors.

Technical Specifications

* Ports: 2 DVI–D on DVI Molex 24–pin (F) connectors
* Bandwidth Per Channel: 2.25Gbps
* Total Bandwidth: 6.75Gbps
* 3D Pass Through: Supported
* Power Consumption: 5W
* Operating Temperature: 0° to +40°C (32° to 104°F)
* Storage Temperature: –40° to +70°C (–40° to 158°F)
* Humidity: 10% to 90%, RHL non–condensing
* Standard Compliance: HDCP, HDMI
* Safety Regulatory Compliance: CE, FCC
* Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
* Product Dimensions: 19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H
* Product Weight: 0.2kg (0.3lbs) approx.
* Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
* Shipping Weight: 0.3kg (0.6lbs) approx.
Additional Information
Product Type:
Switchers & Matrices
