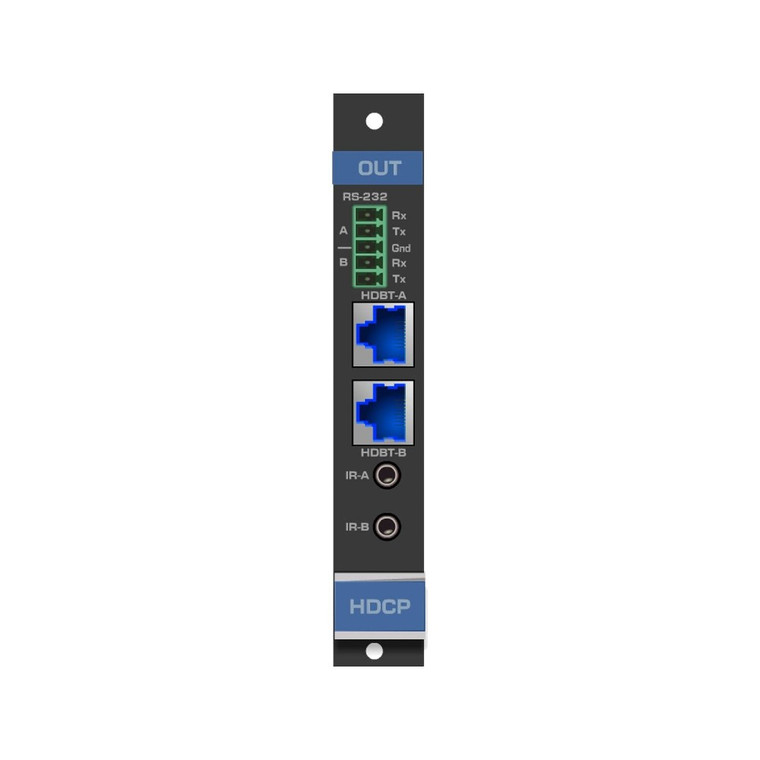

Kramer HDBT7-OUT2-F16 HDBT 4K Lite Out Card for VS-1616D

HDBT7-OUT2-F16 is a two-channel 4K60 4:2:0, long reach, HDBaseT output card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The HDBT7-OUT2-F16 outputs two long reach HDBaseT signals with bidirectional RS-232 and IR from the chassis to the line.

Key Features

• Max. Data Rate - 10.2 Gbps (3.4 Gbps per graphic channel).
• Max. Range - 40m (130ft) - 4K60 4:2:0 or 4K30 4:4:4;70m (230ft) - 1080p 12bit (deep color). Note:When using Kramer HDBaseT cables.
• HDTV Compatible.
• HDCP Compliant.
• 3D Pass-Through.
• Bidirectional RS-232 and IR per Port.
• Kramer Equalization and re-Klocking Technology.

Technical Specifications

• Specifications:

  • Maximum Operating Temperature: +40°C
  • Special Features: HDTV Compatible, HDCP Compliant, 3D Pass-Through
  • Power Rating: 8W
  • For Use With: VS-1616 Series Modular MultiFormat Digital Matrix Switcher
  • Applications: Professional Display Systems Requiring Video Signal Routing, Broadcast/Presentation and Production Facilities/as Well as Monitoring in Large Duplication Systems, Rental/Staging
  • Humidity: 10 to 90%
  • Minimum Operating Temperature: 0°C
• Performance:

  • Bandwidth: 10.2Gbps (3.4Gbps per Graphic Channel)
  • Maximum Size Range: 40m-4K@60Hz (4:2:0) or 4K@30Hz (4:4:4), 70m-1080p 12bits (Deep Color)
• Inputs and Ports:

  • Port Type: 2 RS-232 Serial Ports on a 5 Pin Terminal Block, 2 IR Ports on 3.5mm Jacks
  • Card Slot Type: HDMI
• Dimensions:

  • Length: 13cm
  • Width: 19cm
  • Height: 2cm
  • Weight: 0.3kg
• Other:

  • Standards Met: CE, Complies with Appropriate Requirements of RoHs and WEEE
