Kramer GALIL 8-CO 8" 2–Way Open–Back Ceiling Speakers

Kramer GALIL 8-CO 8" 2–Way Open–Back Ceiling Speakers

Kramer
SKU:
60-000056

Pricing available upon request

Current Stock:
Description

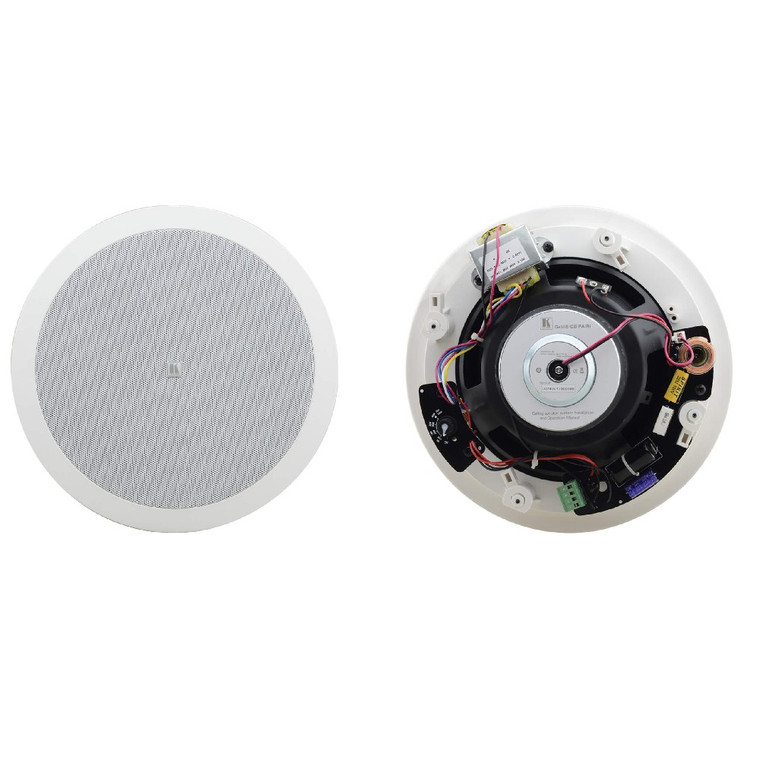

The Galil 8−CO is a pair of two−way, open−back, 8Ω speakers designed for mounting in the ceiling. The speakers feature a multi−tap power transformer for selecting 8Ω or 70V/100V power settings suitable for array installation.

  •  Type — 2–way coaxial speaker.
  •  Woofer — 8” polypropylene cone.
  •  Tweeter — 1” silk dome.
  •  Frequency Response — 60Hz to 20kHz @ ±3dB.
  •  Impedance — 8Ω.
  •  Power Handling — 50W RMS, 140W continuous program.
  •  Transformer Taps — 70V: 50W/25W/12W/6W/Off (Lo–Z); 100V: 50W/25W/12W/Off (Lo–Z).
  •  Package Includes — 2 speakers (1 pair), cutout template and user manual.
  •  Mounting Bracket (Optional) — SKIC–8.

Key Features

  • Woofer — 8” polypropylene cone
  • Tweeter — 1” Mylar dome
  • Impedance — 8Ω
  • Power Handling — 50W RMS, 140W Continuous
  • Transformer Taps — 70/100V
  • 2 Speakers (1 Pair)

Technical Specifications

  • Description: 2–way open–back ceiling speakers
  • Frequency Response: 47Hz to 20kHz @–10dB, 60Hz to 20kHz ±3dB
  • Woofer: 8” (200mm) polypropylene with rubber surround
  • Tweeter: 1” (25.4mm) silk dome
  • Impedeance: 8Ω (transformer tap in off position)
  • Transformer Taps:
    • 70V: 50W/25W/12W/6W/Off (Lo–Z)
    • 100V: 50W/25W/12W/Off (Lo–Z)
  • Sensitivity: 88.5dB SPL, 1W@1m
  • Max SPL:
    • Continuous: 106dB
    • Peak: 109dB
  • Power Handling: 50W RMS, 140W continuous program
  • Crossover Frequency: 3.15kHz
  • Coverage Angle: 104°
  • Directivity Factor (Q): 8 averaged 1kHz to 10kHz
  • Directivity Index (DI): 9dB averaged 1kHz to 10kHz
  • Input Connector: Terminal block
  • Materials: ABS bezel, aluminum grill
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
  • Weight per Single Speaker: 2.55kg (5.62lbs) approx
  • Shipping Weight (For Pair): 7.1kg (15.7lbs) approx
  • Installation Clearance: Mounting depth: 8.8cm (3.5”)
  • Cutout Diameter: 23.7cm (9.33")
  • Optional: SKIC–8 installation bracket

What's Included

  • Safety cord attached to grill
  • Ceiling mounting kit
Additional Information
Product Type:
Speakers
