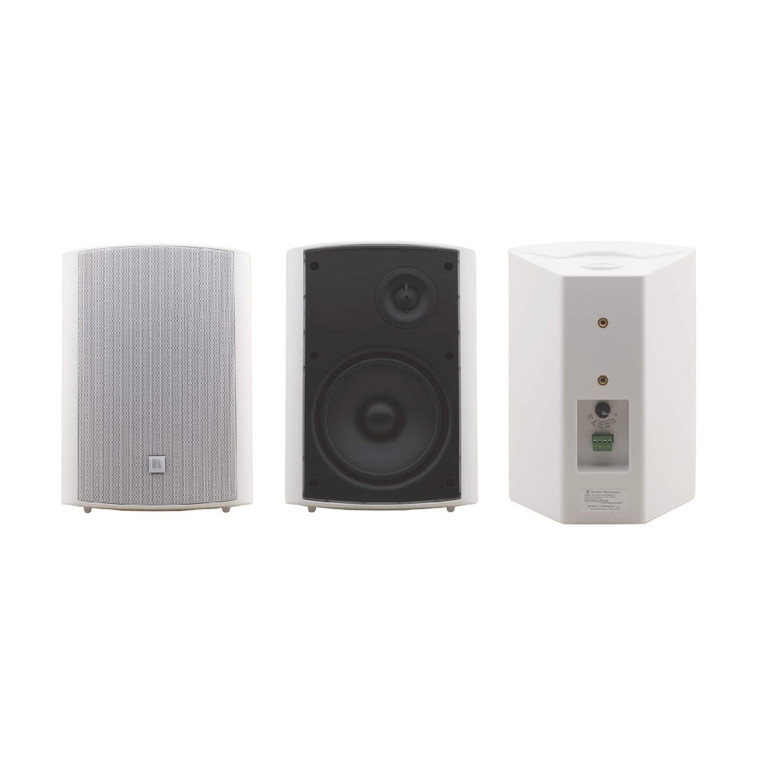

Kramer GALIL 6-O 6.5" 2–Way On–Wall Speakers (White)

Kramer GALIL 6-O 6.5" 2–Way On–Wall Speakers (White)

Kramer
SKU:
60-00003799

Pricing available upon request

Current Stock:
Description

The Galil 6−O on−wall speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings, which are suitable for an array installation. Available in white or black.

  •  Type — 2–way on–wall speaker.
  •  Woofer — 6.5” polypropylene cone.
  •  Tweeter — 1” silk dome.
  •  Impedance — 8Ω.
  •  Power Handling — 40W RMS, 110W continuous program.
  •  Transformer Taps — 70V: 30W/15W/7.5W/3.7W/Off (Lo–Z); 100V: 30W/15W/7.5W/Off (Lo–Z).
  •  Package Includes — 2 speakers (1 pair).

Key Features

  • Woofer — 6.5” polypropylene cone
  • Tweeter — 1” silk dome
  • Impedance — 8Ω
  • Power Handling — 40W RMS, 110W Continuous
  • Transformer Taps — 70/100V
  • 2 Speakers (1 Pair)

Technical Specifications

  • Description: 2–way on–wall speakers
  • Frequency Response: 65Hz to 20kHz @–10dB, 80Hz to 20kHz @±3dB
  • Woofer: 6.5” (165mm) polypropylene cone with rubber surround
  • Tweeter: 1” (25mm) silk dome
  • Impedance: 8Ω (transformer tap in off position)
  • Transformer Taps: 70V — 30W/15W/7.5W/3.7W/Off (Lo–Z), 100V — 30W/15W/7.5W/Off (Lo–Z)
  • Sensitivity: 87dB SPL, 1W @1m
  • Max SPL
    • Continuous: 102dB
    • Peak: 105dB
  • Power Handling: 40W RMS, 110W continuous program
  • Crossover Frequency: 4.3kHz
  • Directivity Factor (Q): 3.9 averaged 1kHz to 10kHz
  • Directivity Index (DI): 5.9dB averaged 1kHz to 10kHz
  • Input Connectors: Terminal blocks
  • Materials: Frame, grill and brackets steel cabinet ABS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
  • Weight per Single Speaker: 2.8kg (6.2lbs) approx
  • Weight with Mounting Kit: 3kg (6.6lbs) approx
  • Shipping Weight (For Pair): 6.6kg (14.6lbs) approx
  • Dimensions with Mounting Brackets: 21.5cm x 22.5cm x 30.1cm (8.5” x 8.9” x 11.9”), W, D, H
  • Installation Clearance:
    • Front panel to wall (with mounting bracket): 21cm (8.2”)
    • Back panel to wall (with mounting bracket): 4.5cm (1.8”)
  • Options: BCP–2S speaker cable

What's Included

  • 2 mounting brackets (including 4 knobs and 4 mounting screws)
Additional Information
Product Type:
Speakers
