Kramer GALIL 6-I 6.5" 2–Way Open–Back Rectangular In–Wall Speakers

Kramer
SKU:
82-011608

Pricing available upon request

Current Stock:

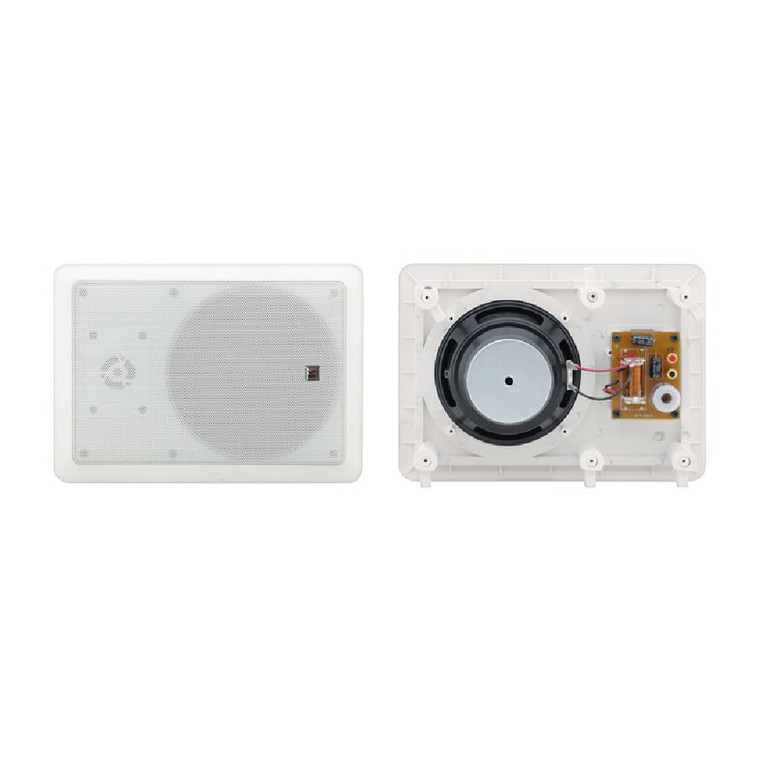

The Galil 6−I is a pair of two−way, open−back speakers designed for mounting in the wall. They have an infinite baffle design and aluminum grills.

  •  Type — 2–way open–back in–wall speaker with infinite baffle design.
  •  Woofer — 6.5” (165mm) polypropylene with rubber surround.
  •  Tweeter — 1” (25.4mm) silk.
  •  Frequency Response — 50Hz to 20kHz @–15dB, 60Hz to 20kHz @±3dB.
  •  Impedance — 8Ω.
  •  Sensitivity — 87dB SPL, 1W@1m.
  •  Recommended Power — RMS 80W, 220W continuous program.
  •  Grill — White baffle with aluminum grills with UV treatment compliance. Locking arms for quick in–wall installation.

Key Features

  • Infinite Baffle Design
  • Woofer — 6.5"
  • Tweeter — 1"
  • Impedance — 8Ω
  • Freq Response — 30Hz to 20kHz
  • 2 Speakers (1 Pair)

Technical Specifications

  • Speaker Type: 2–way in–wall speakers
  • Frequency Response: 50Hz to 20kHz @–15dB, 60Hz to 20kHz @±3dB
  • Woofer: 6.5” (165mm) polypropylene with rubber surround
  • Tweeter: 1” (25.4mm) silk
  • Impedance: 8Ω
  • Sensitivity: 87dB SPL, 1W@1m
  • Max. SPL:
    • Continuous: 109dB
    • Peak: 112dB
  • Power Handling: 80W RMS, 220W continuous program
  • Crossover Frequency: 1.8kHz
  • Coverage Angle: 107Deg. (if mounted on the ceiling)
  • Directivity Factor (Q): 3.4, averaged 1kHz to 10kHz
  • Directivity Index (DI): 5.3dB averaged 1kHz to 10kHz
  • Input Connector: Terminal block
  • Materials: ABS Frame, aluminum grill, safety cord attached to the grill
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
  • Weight per Single Speaker: 1.6kg (3.5lbs) approx
  • Shipping Weight (For Pair): 3.8kg (8.4lbs) approx
  • Installation Clearance:
    • Mounting depth: 7cm (2.76")
    • Cutout dimensions: 18.5cm x 27.3cm (7.28" x 10.75"), W, H
  • Options: Kramer SKIC mounting kit

What's Included

  • 2 speakers (1 pair)
  • Template and user manual.
Product Type:
Speakers
