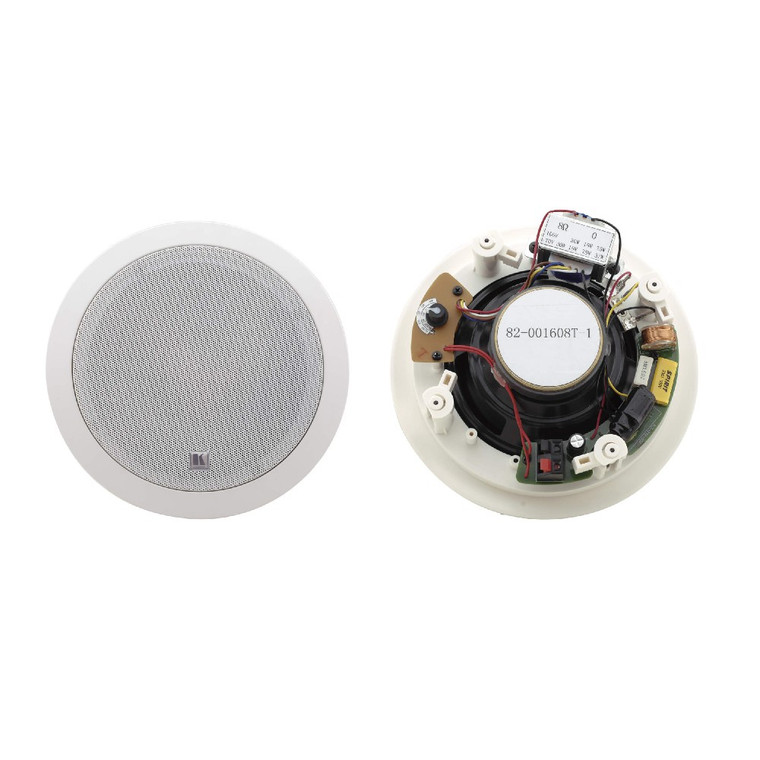

Kramer GALIL 6-CO 6.5" 2–Way Open–Back Ceiling Speakers

The Galil 6−CO is a pair of two−way open−back 8Ω speakers designed for mounting in the ceiling. The speakers feature a multi−tap power transformer for selecting direct 8Ω (bypassing the transformer) or 70V/100V power settings suitable for array installation.

•  Type — 2–way coaxial round open–back ceiling speaker with infinite baffle design.
•  Woofer — 6.5" polypropylene cone with rubber surround.
•  Tweeter — 0.5" Mylar.
•  Frequency Response — 60Hz to 20kHz.
•  Impedance — 8Ω.
•  Sensitivity — (SPL) 87dB (1W @1m with 1kHz).
•  Recommended Power — RMS 30W, 80W max.
•  Grill — White baffle aluminum grills.
•  Package — 2 speakers (1 pair), template and user manual.
•  Mounting Bracket (Optional) — SKIC–6.

Key Features

• Woofer — 6.5"
• Tweeter — 0.5"
• Impedance — 8Ω
• Freq Response — 60Hz to 20kHz
• 2 Speakers (1 Pair)

Technical Specifications

• Description: 2–way open–back ceiling speakers
• High Frequency Driver: 0.5" Mylar dome tweeter
• Low Frequency Driver: 6.5” polypropylene cone with rubber surround woofer
• Impedance: 8Ω
• Dispersion Coverage: 120° @2kHz
• Crossover Frequency: 3kHz
• Nominal Sensitivity: 87dB SPL @1m, 1W
• Coverage Angle: 104°
• Directivity Factor (Q): 8.5 (averaged 100Hz to 10kHz)
• Directivity Index (DI): 9.2dB (averaged 100Hz to 10kHz)
• Frequency Response: 60Hz to 20kHz
• Input Power: 30W RMS, 80W continuous program
• Transformer:

  • 70V — 3.7W/7.5W/15W/30W
  • 100V — 7.5W/15W/30W
• Recommended Amplifier Power: 30W
• Input Connector: Spring–type push terminal block
• Weight per Single Speaker: 1.55kg (3.41lbs) approx
• Shipping Weight (For Pair): 4.05kg (8.91lbs) approx
• Dimensions (OD): 23cm (9.06")
• Cutout Diameter: 19.5cm (7.68")
• Mount Depth: 7.5cm (2.95")
• Optional: SKIC–6 installation bracket
