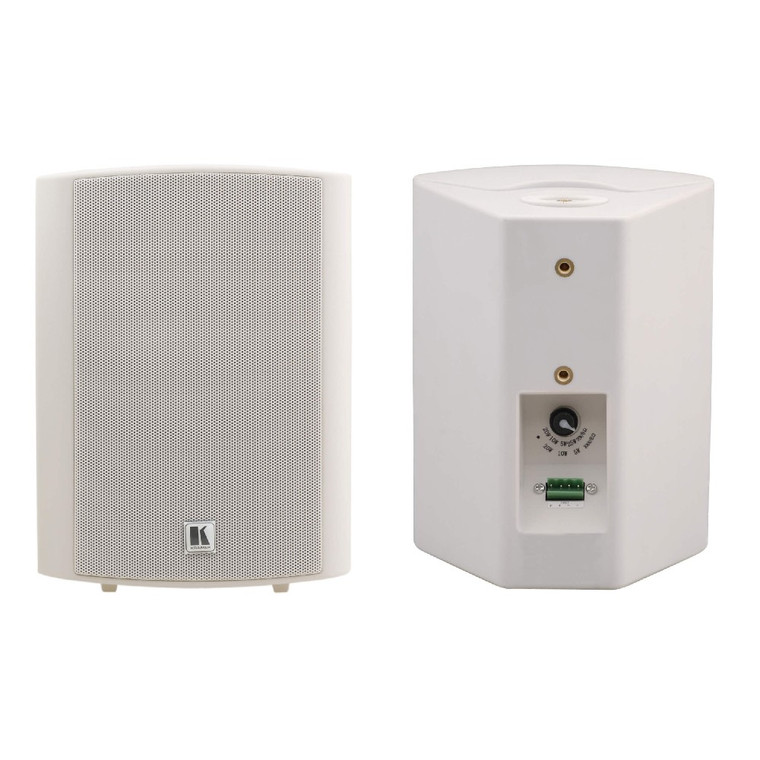

Kramer GALIL 5-O 5.25" 2–Way On–Wall Speakers

Kramer GALIL 5-O 5.25" 2–Way On–Wall Speakers

Kramer
SKU:
60-00003699

Pricing available upon request

Current Stock:
Description

The Galil 5−O On−wall Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. Available in white.

  •  Type — 2–way on–wall speaker.
  •  Woofer — 5.25” polypropylene cone.
  •  Tweeter — 0.5” Mylar dome.
  •  Impedance — 8Ω.
  •  Power Handling — 30W RMS, 80W continuous program.
  •  Transformer Taps — 70V — 20W/10W/5W/2.5W/Off (Lo–Z), 100V — 20W/10W/5W/Off (Lo–Z).
  •  Package — 2 speakers (1 pair).

Key Features

  • Woofer — 5.25” polypropylene cone
  • Tweeter — 0.5” silk dome
  • Impedance — 8Ω
  • Power Handling — 30W RMS, 80W Continuous
  • Transformer Taps — 70/100V
  • 2 Speakers (1 Pair)

Technical Specifications

  • Description: 2–way on–wall speakers
  • Frequency Response: 80Hz to 20kHz @–10dB, 100Hz to 20kHz @±3dB
  • Woofer: 5.25” (133mm) polypropylene cone
  • Tweeter: 0.5” (13mm) Mylar
  • Impedance: 8Ω (transformer tap in off position)
  • Transformer Taps: 70V — 20W/10W/5W/2.5W/Off (Lo–Z), 100V — 20W/10W/5W/Off (Lo–Z)
  • Sensitivity: 89dB 1W @1m
  • Max SPL
    • Continuous: 103dB
    • Peak: 106dB
  • Power Handling: 30W RMS, 80W continuous program
  • Crossover Frequency 7.2kHz
  • Directivity Factor (Q): 4.0, averaged 1kHz to 10kHz
  • Directivity Index (DI): 6.0 dB averaged 1kHz to 10kHz
  • Input Connectors: Terminal blocks
  • Materials: Frame, grill and brackets steel cabinet ABS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
  • Weight per Single Speaker: 2kg (4.4lbs) approx
  • Weight with Mounting Kit: 2.4kg (5.3lbs) approx
  • Shipping Weight (For Pair): 4.8kg (10.6lbs) approx
  • Dimensions with Mounting Brackets: 18.5cm x 16.7cm x 27cm (7.28” x 6.6” x 10.6”), W, D, H
  • Installation Clearance:
    • Front panel to wall (with mounting bracket): 21cm (8.2”)
    • Back panel to wall (with mounting bracket): 4.5cm (1.8”)
  • Options: BCP–2S speaker cable

What's Included

  • 2 mounting brackets (including 4 knobs and 4 mounting screws)
Additional Information
Product Type:
Speakers
