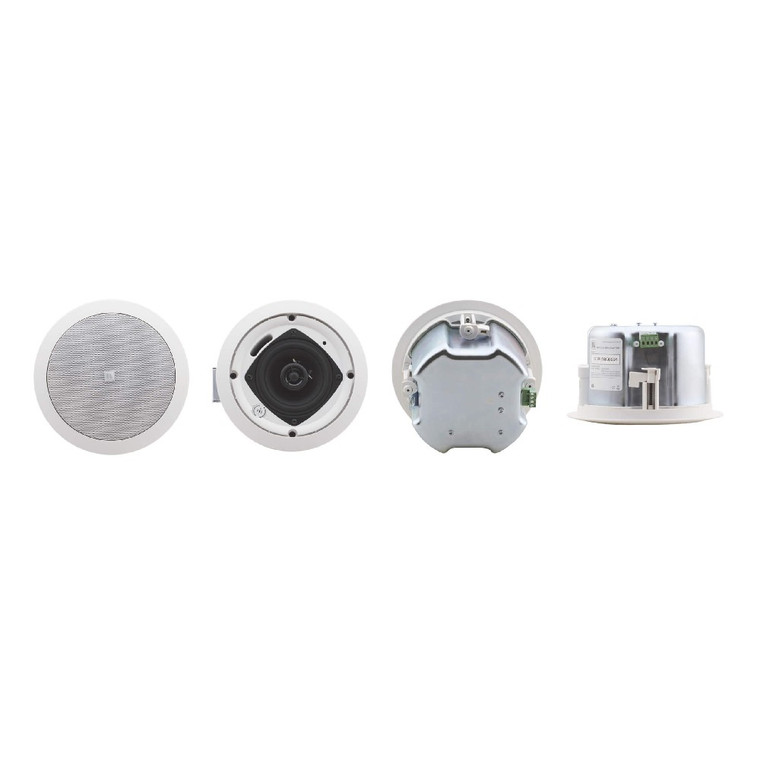

Kramer GALIL 4-C 4" 2–Way Closed–Back Ceiling Speakers
KramerPricing available upon request
The Galil 4−C Closed−back Compact Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. The Galil 4−CO open−back version is also available.
- Type — 2–way coaxial speaker.
- Woofer — 4” polypropylene cone.
- Tweeter — 0.5” Mylar dome.
- Impedance — 8Ω.
- Power Handling — 30W RMS, 80W continuous program.
- Transformer Taps — 70V: 30W/15W/7.5W/3.7W/Off (Lo–Z); 100V: 30W/15W/7.5W/Off (Lo–Z).
- UL 1480 & 2043 Listed
- Package Includes — 2 speakers (1 pair), ceiling mounting kit, template and user manual.
- Installation Dimensions — External diameter: 19.5cm (7.68"); cutout diameter: 16.7cm (6.57")
Key Features
- UL Listed
- Woofer — 4"
- Tweeter — 1"
- Impedance — 8Ω
- 70V/100V Tap selection
- 2 Speakers (1 Pair)
Technical Specifications
- Description: 2–way closed–back ceiling speakers
- Frequency Response: 85Hz to 20kHz @–10dB, 100Hz to 20kHz @±3dB
- Woofer: 4” (103mm) polypropylene with rubber surround
- Tweeter: 0.5” (13mm) Mylar
- Impedance: 8Ω (transformer tap in off position)
- Transformer Taps: 70V — 30W/15W/7.5W/3.7W/Off (Lo–Z), 100V — 30W/15W/7.5W/Off (Lo–Z)
- Sensitivity: 85dB SPL, 1W@1m
- Max SPL:
- Continuous: 95dB
- Peak: 97dB
- Power Handling: 30W RMS, 80W continuous program
- Crossover Frequency: 6kHz
- Coverage Angle: 90°
- Directivity Factor (Q): 4.2 averaged 1kHz to 10kHz
- Directivity Index (DI): 6.2dB averaged 1kHz to 10kHz
- Input Connector: Terminal block
- Materials: ABS bezel, aluminum grill, metal back can
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Weight per Single Speaker: 1.75kg (3.9lbs) approx
- Shipping Weight (For Pair): 6.1kg (13.5lbs) approx
- Installation Dimensions:
- Mounting depth: 10.7cm (4.2”)
- External diameter: 19.5cm (7.68")
- Cutout diameter: 16.7cm (6.57")
What's Included
- Installation bracket
- Safety cord attached to grill
- Ceiling mounting kit
- Product Type:
- Speakers
