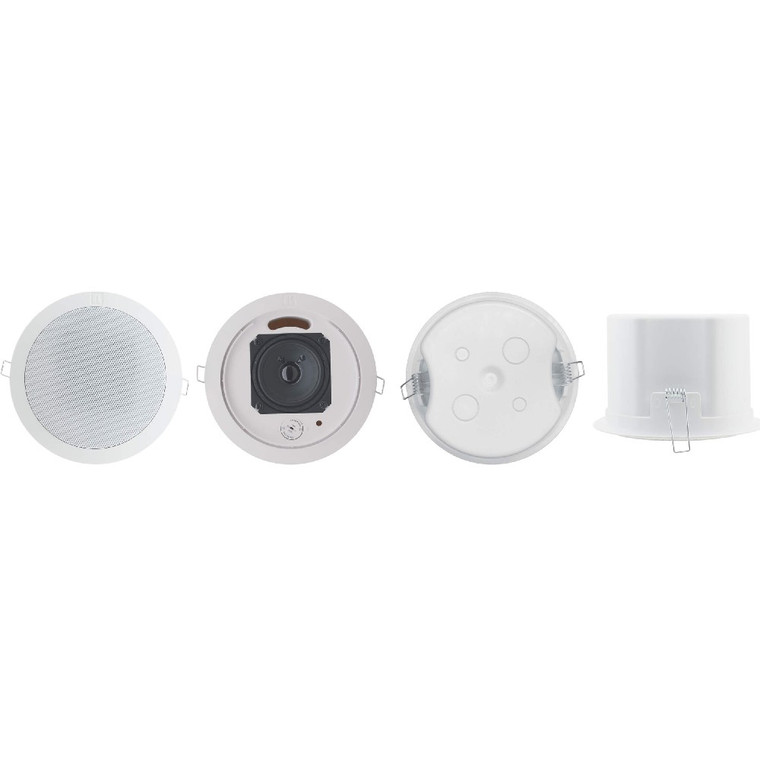

Kramer GALIL 2-C 2.5" Closed–back Ceiling Speaker

The Galil 2−C is a 2.5” full−range closed−back speaker with ceramic terminals and a plastic self−extinguishing back−can. It is especially designed to meet the requirements of fire alarm systems in public spaces and is EN 54−24 certified.

•  Type — Closed–back ceiling speaker.
•  Woofer — 2.5” paper cone.
•  Impedance — 8Ω (transformer tap in off position).
•  Power Handling — 10W RMS, 30W continuous program.
•  Transformer Taps — 70V — 3W/1.5W/0.75W/8Ω/10W/Off (Lo–Z); 100V — 6W/3W/1.5W/8Ω/10W, Off (Lo–Z).

Key Features

• Woofer — 2.5” paper cone
• Impedance — 8Ω
• Power — 10W RMS, 30W continuous
• Taps — 70/100V

Technical Specifications

• Description: Full–range closed–back ceiling speaker
• Frequency Response: 90Hz to 20kHz @–15dB, 150Hz to 20kHz @–3dB
• Woofer: 2.5” (68mm) paper cone with rubber surround
• Impedance: 8Ω (transformr tap in off position)
• Transformer Taps:

  • 70V — 3W/1.5W/0.75W/8Ω/10W/Off (Lo–Z)
  • 100V — 6W/3W/1.5W/8Ω/10W, Off (Lo–Z)
• Sensitivity: 69dB SPL, 10W@4m
• Max SPL: Continuous: 79.3dB SPL, 10W@4m
• Power Handling: 10W RMS, 30W continuous program
• Directivity Factor (Q): 3.7, averaged 1kHz to 10kHz
• Directivity Index (DI): 5.7dB averaged 1kHz to 10kHz
• Coverage Angle @-6dB: 500Hz–240°, 1kHz–160°, 2kHz–110°, 4kHz–105°
• Input Connector: Ceramic terminals
• Enclosure Protection Degree: IP21C
• Materials: Frame, aluminum grille, safety cord attached to grille, plastic back–can (self–extinguishing ABS according to UL94 V–0)
• Operating Temperature: –10° to +55°C (14° to 131°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Weight per Single Speaker: 0.5kg (1.1bs)
• Installation Clearance: Mounting depth: 9.5cm (3.74")
• Cut-Out Diameter: 12.6cm
